A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and careful routing of sensitive signals is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
Optimization involves selecting the correct ADC mode, setting the appropriate clock frequency, and adjusting the analog input range and gain. TI provides ADC configuration guidelines and example code in the datasheet and software development kits.
Use a clean, low-noise power supply with adequate decoupling capacitors. Ensure the power supply voltage is within the recommended range (1.7V to 3.6V). Use a voltage regulator or LDO to regulate the power supply, and consider using a power-on reset (POR) circuit.
Use a compatible interface protocol (e.g., SPI, I2C, or parallel) and ensure proper signal routing and termination. Implement a reliable data transfer mechanism, such as using a FIFO or DMA, and consider using a dedicated clock signal for synchronization.
Ensure good airflow around the device, use a heat sink or thermal pad if necessary, and avoid blocking the thermal vias on the PCB. Monitor the device's junction temperature and adjust the operating conditions or thermal design as needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE7070IRGZR Overview

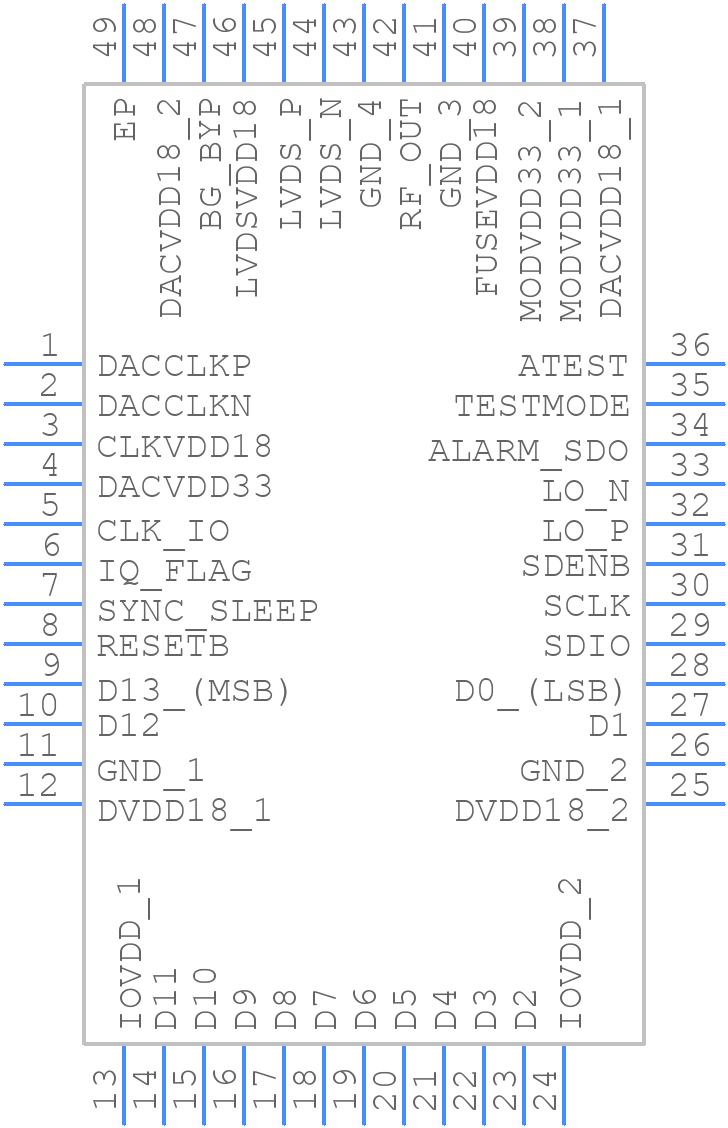

Use the download button to access the AFE7070IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE70,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
