A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital signals separate, and use shielding and filtering to minimize noise.
Optimize the ADC by selecting the correct clock frequency, setting the correct gain and offset, and using the built-in calibration features. Consult the datasheet and application notes for specific guidance.
The AFE7071IRGZT has a maximum junction temperature of 150°C. Ensure good thermal conductivity, use thermal vias, and consider heat sinks or thermal interfaces to maintain a safe operating temperature.
Use a compatible digital interface (e.g., SPI, I2C, or LVDS) and ensure proper signal termination, clock synchronization, and data formatting. Consult the datasheet and application notes for specific interface requirements.
Follow proper PCB design and layout practices, use shielding and filtering, and ensure compliance with relevant EMC and EMI standards (e.g., CISPR, FCC, and EN).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AFE7071IRGZT Overview

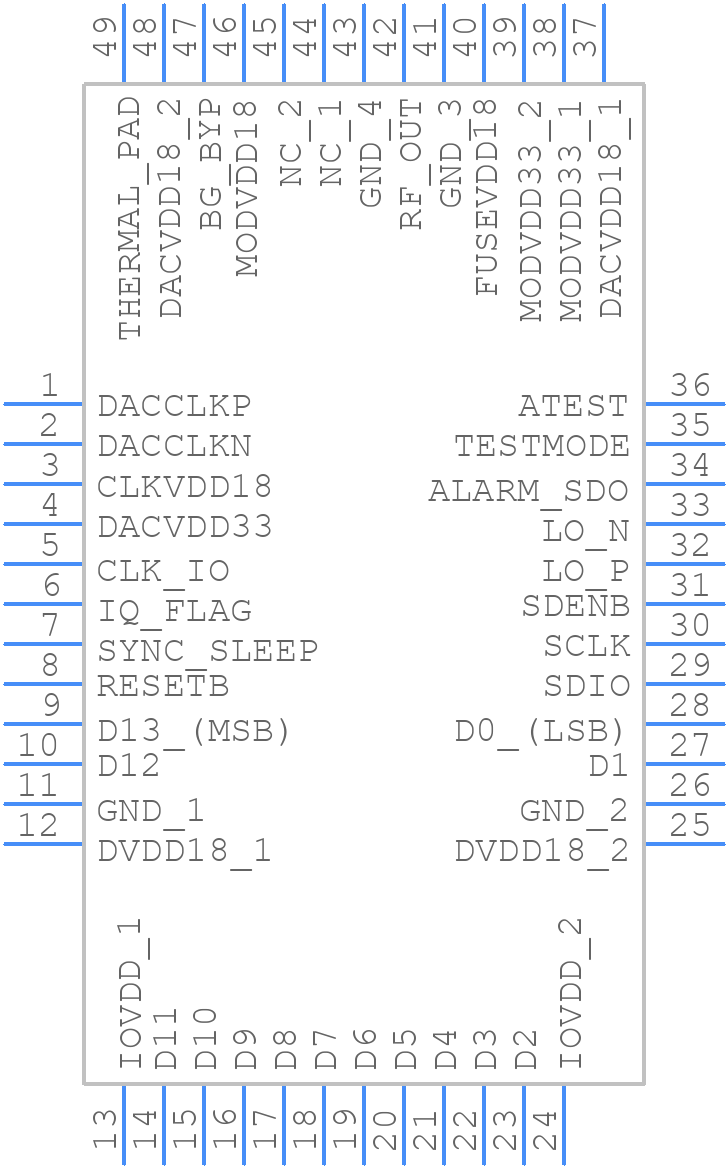

Use the download button to access the AFE7071IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFE70,
or try a keyword search, such as Digital to Analog Converters
