AFK227M06D16T-F - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - SMD 220uF 6.3V 20% AEC-Q200

Download AFK227M06D16T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFK227M06D16T-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

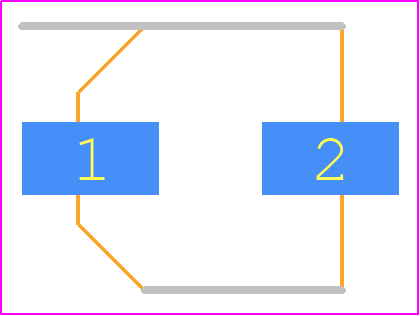

AFK227M06D16T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 6.3*5.8
click to zoom
3D Models
AFK227M06D16T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - 6.3*5.8
click to zoom

AFK227M06D16T-F Details

  • Manufacturer Part Number:

    AFK227M06D16T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6.9

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    360 mΩ

  • Height:

    5.8 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.0139 mA

  • Length:

    7.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    180 mA

  • Size Code:

    3126

  • Surface Mount:

    YES

  • Tan Delta:

    0.26

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

AFK227M06D16T-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the AFK227M06D16T-F is 260°C (500°F) for 10 seconds or less.
  • Yes, the AFK227M06D16T-F capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the AFK227M06D16T-F capacitor can be found in the datasheet, but as a general guideline, the capacitor's voltage rating should be derated by 1.25% per 1°C above 85°C (185°F).
  • Yes, the AFK227M06D16T-F capacitor is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.
  • The shelf life of the AFK227M06D16T-F capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under controlled environmental conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFK227M06D16T-F Overview

Use the download button to access the AFK227M06D16T-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFK22, or try a keyword search, such as Aluminum Electrolytic Capacitors
