AFK227M63H32VT-F - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - SMD 220uF 63V 20 AEC-Q200

Download AFK227M63H32VT-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFK227M63H32VT-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

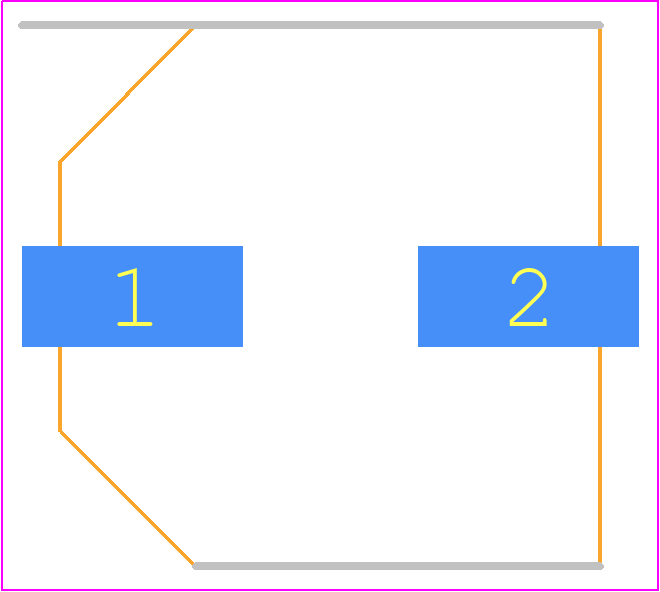

AFK227M63H32VT-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 12.5x13.8
click to zoom
3D Models
AFK227M63H32VT-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - 12.5x13.8
click to zoom

AFK227M63H32VT-F Details

  • Manufacturer Part Number:

    AFK227M63H32VT-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    160 mΩ

  • Height:

    13.8 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.1386 mA

  • Length:

    13.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, 13 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    600 mA

  • Size Code:

    5353

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    13.5 mm

AFK227M63H32VT-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the AFK227M63H32VT-F is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in demanding applications.
  • The ESR of the AFK227M63H32VT-F is relatively low, which means it can handle high-frequency applications with minimal energy loss. A lower ESR also reduces the capacitor's self-heating, increasing its overall reliability.
  • The AFK227M63H32VT-F has a maximum operating temperature of 125°C (257°F), making it suitable for high-temperature applications. However, it's essential to derate the capacitor's voltage and current ratings according to the manufacturer's guidelines to ensure reliable operation.
  • The AFK227M63H32VT-F has an MSL rating of 1, which means it can withstand normal humidity levels without requiring special handling or storage procedures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFK227M63H32VT-F Overview

Use the download button to access the AFK227M63H32VT-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFK22, or try a keyword search, such as Aluminum Electrolytic Capacitors
