AFK475M50B12T-F - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - SMD 50V 4.7uF 4X5.8 AEC-Q200

Download AFK475M50B12T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFK475M50B12T-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

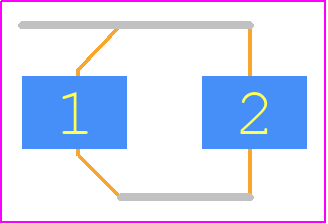

AFK475M50B12T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 4x5.8
click to zoom
3D Models
AFK475M50B12T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - 4x5.8
click to zoom

AFK475M50B12T-F Details

  • Manufacturer Part Number:

    AFK475M50B12T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    4.7 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    4 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    2900 mΩ

  • Height:

    5.8 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.003 mA

  • Length:

    5.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    45 mA

  • Size Code:

    2217

  • Surface Mount:

    YES

  • Tan Delta:

    0.1

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    4.3 mm

AFK475M50B12T-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the AFK475M50B12T-F is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures reliable performance in demanding applications.
  • The ESR of the AFK475M50B12T-F is relatively low, which means it can handle high-frequency applications with minimal energy loss. A lower ESR also reduces the capacitor's self-heating, increasing its reliability and lifespan.
  • Yes, the AFK475M50B12T-F is designed to operate up to 80,000 feet (24,384 meters) above sea level, making it suitable for high-altitude applications such as aerospace and defense systems.
  • The AFK475M50B12T-F has an MSL rating of 1, which means it can withstand normal humidity levels without requiring special handling or storage procedures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFK475M50B12T-F Overview

Use the download button to access the AFK475M50B12T-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFK47, or try a keyword search, such as Aluminum Electrolytic Capacitors
