AFK476M35D16T-F - Cornell Dubilier

Description: Cap Aluminum Lytic 47uF 35V 20% (6.3 X 5.8mm) SMD 0.36 Ohm 240mA 2000h 105C T/R

Download AFK476M35D16T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFK476M35D16T-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

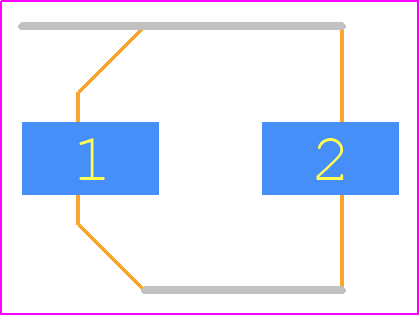

AFK476M35D16T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 6.3*5.8
click to zoom
3D Models
AFK476M35D16T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - 6.3*5.8
click to zoom

AFK476M35D16T-F Details

  • Manufacturer Part Number:

    AFK476M35D16T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    360 mΩ

  • Height:

    5.8 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.0165 mA

  • Length:

    7.8 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    180 mA

  • Size Code:

    3126

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

AFK476M35D16T-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 3 seconds. It's essential to follow the manufacturer's recommended soldering profile to prevent damage to the capacitor.
  • Yes, the AFK476M35D16T-F is designed to withstand vibrations up to 10g acceleration. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The AFK476M35D16T-F is designed to operate in humid environments, but it's essential to follow the manufacturer's guidelines for moisture sensitivity. The capacitor is rated for 85°C/85% RH environments, but it's recommended to take precautions to minimize moisture exposure.
  • The ESR of the AFK476M35D16T-F is approximately 0.015 ohms at 100 kHz. This value may vary depending on the frequency and operating conditions.
  • Yes, the AFK476M35D16T-F is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFK476M35D16T-F Overview

Use the download button to access the AFK476M35D16T-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFK47, or try a keyword search, such as Aluminum Electrolytic Capacitors
