Part Image

AFK477M35H32T-F - Cornell Dubilier

Description: Cap Aluminum Lytic 470uF 35V 20% (12.5 X 13.5mm) SMD 0.06 Ohm 1100mA 5000h 105°C Automotive T/R

Download AFK477M35H32T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AFK477M35H32T-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

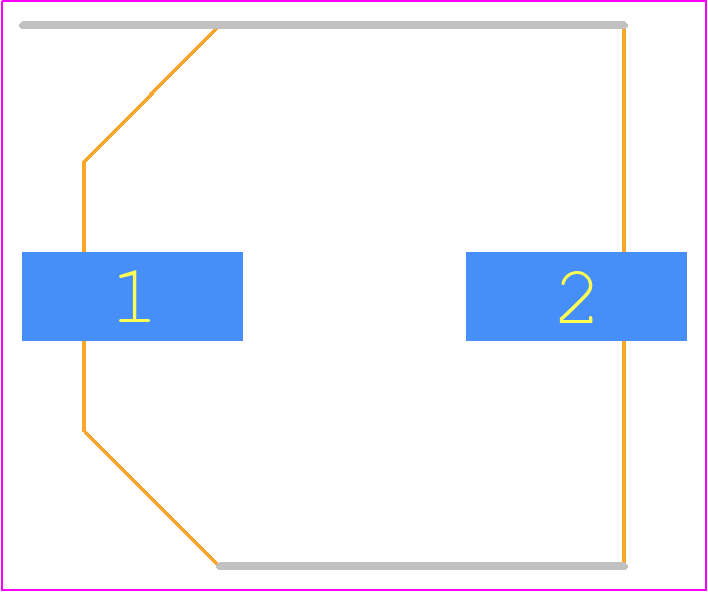

AFK477M35H32T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - AFK (H)
click to zoom
3D Models
AFK477M35H32T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - AFK (H)
click to zoom

AFK477M35H32T-F Details

  • Manufacturer Part Number:

    AFK477M35H32T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    60 mΩ

  • Height:

    13.5 mm

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.1645 mA

  • Length:

    15 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    825 mA

  • Size Code:

    5953

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    13.5 mm

AFK477M35H32T-F Frequently Asked Questions (FAQs)

  • The recommended soldering profile for the AFK477M35H32T-F is a peak temperature of 260°C for 10-15 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, the AFK477M35H32T-F is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to consult with a Cornell Dubilier Electronics Inc representative for specific application guidance.
  • The ESR of the AFK477M35H32T-F is approximately 0.015 ohms at 100 kHz and 20°C. However, please note that ESR can vary depending on the operating frequency and temperature.
  • Yes, the AFK477M35H32T-F is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's guidelines for lead-free soldering and to ensure that the soldering process is optimized for the specific application.
  • The maximum operating temperature range for the AFK477M35H32T-F is -55°C to 125°C. However, please note that the capacitor's performance and lifespan may be affected by extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AFK477M35H32T-F Overview

Use the download button to access the AFK477M35H32T-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AFK47, or try a keyword search, such as Aluminum Electrolytic Capacitors
