AG9812M - Silvertel

Description: Miniature SMT PoE PD Module 12VDC O/P

Download AG9812M Model

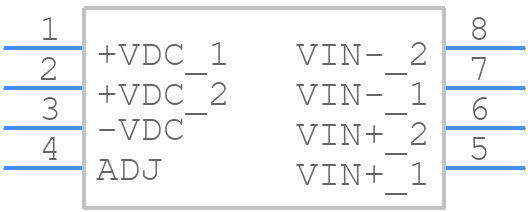

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

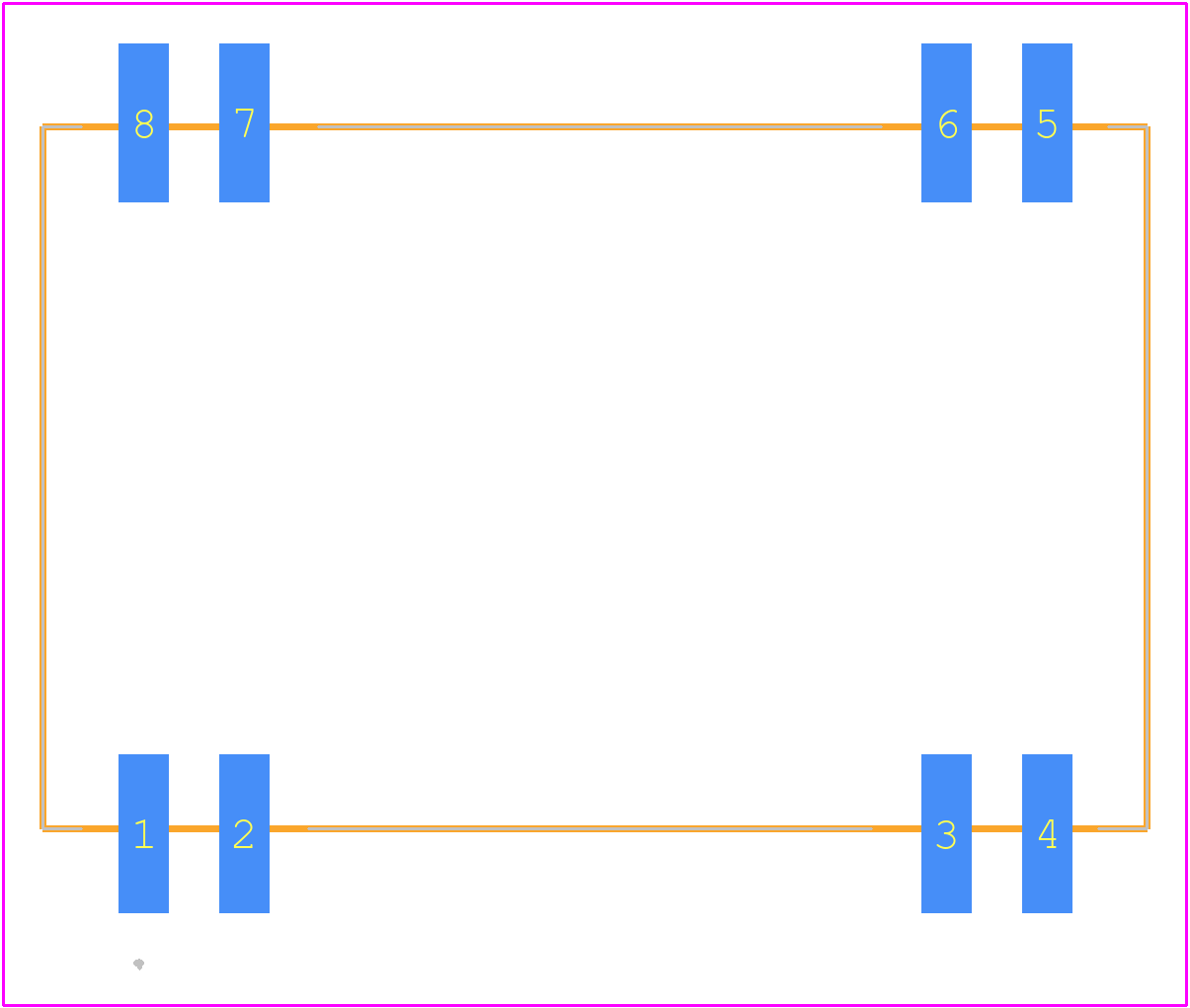

AG9812M - Silvertel PCB footprint - Other - Other - AG9812M-1
click to zoom
3D Models
AG9812M - Silvertel  - 3D model - Other - AG9812M-1
click to zoom

AG9812M Details

  • Manufacturer Part Number:

    AG9812M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    SMT-8

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Silver Telecom Ltd

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-30 Code:

    R-XDMA-L8

  • Length:

    27.94 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    12.2 mm

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Min (Vsup):

    36 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    L BEND

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    17.78 mm

AG9812M Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device near the edge of the board for better thermal dissipation. A heat sink or thermal pad is recommended for high-power applications.
  • To optimize the AG9812M for low-power consumption, use the power-down mode, reduce the clock frequency, and minimize the output current. Additionally, consider using a lower supply voltage and optimizing the PCB design for minimal power loss.
  • The AG9812M has built-in ESD protection diodes, but additional external protection measures such as TVS diodes or ESD arrays may be necessary depending on the application. Latch-up prevention can be achieved by following proper PCB design and layout guidelines, such as separating analog and digital circuits and using guard rings.
  • To troubleshoot common issues with the AG9812M, check the PCB layout and design for any errors or omissions, ensure proper power supply decoupling, and verify that the device is operated within its recommended specifications. Additionally, consult the datasheet and application notes for troubleshooting guidelines.
  • Silver Telecom Ltd has implemented various reliability and quality control measures, including rigorous testing and inspection procedures, to ensure the AG9812M meets high standards of quality and reliability. Additionally, the device is manufactured in accordance with industry standards such as ISO 9001 and IATF 16949.
