AGL125V5-FG144 - Microchip

Description: series Field Programmable Gate Array (FPGA) IC 97 36864 3072 144-LBGA

Download AGL125V5-FG144 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AGL125V5-FG144 - Microchip - PCB symbol
click to zoom
PCB Footprints

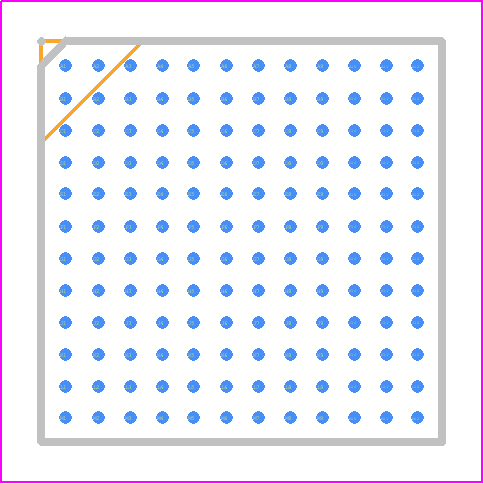

AGL125V5-FG144 - Microchip PCB footprint - BGA - BGA - LFBGA-144
click to zoom
3D Models
AGL125V5-FG144 - Microchip - 3D model - BGA - LFBGA-144
click to zoom

AGL125V5-FG144 Details

  • Manufacturer Part Number:

    AGL125V5-FG144

  • Part Life Cycle Code:

    Active

  • Package Description:

    FBGA-144

  • Pin Count:

    144

  • Manufacturer Package Code:

    LFBGA-144

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    29 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Clock Frequency-Max:

    108 MHz

  • JESD-30 Code:

    S-PBGA-B144

  • JESD-609 Code:

    e0

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Equivalent Gates:

    125000

  • Number of Inputs:

    97

  • Number of Logic Cells:

    3072

  • Number of Outputs:

    97

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Organization:

    3072CLBS, 125000 GATES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA144,12X12,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    1.575 V

  • Supply Voltage-Min:

    1.425 V

  • Supply Voltage-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 130 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

AGL125V5-FG144 Frequently Asked Questions (FAQs)

  • Microchip provides a reference design guide (DS50002473A) that includes PCB layout recommendations, thermal management guidelines, and decoupling capacitor placement suggestions to ensure optimal performance and minimize thermal issues.
  • The clock settings can be configured using the Microchip MPLAB X IDE or the Microchip XC16 compiler. The datasheet provides a detailed description of the clock configuration registers, and the Microchip documentation (DS70005327B) provides a step-by-step guide on configuring the clock settings.
  • The maximum operating frequency for the AGL125V5-FG144 is 40 MHz, as specified in the datasheet. However, the actual operating frequency may vary depending on the system design, clock configuration, and environmental conditions.
  • The AGL125V5-FG144 has several power-saving modes, including Sleep, Idle, and Doze modes. These modes can be implemented using the Power Control (PCON) registers and the Sleep Mode Control (SMC) registers. The Microchip documentation (DS70005327B) provides a detailed description of the power-saving modes and their implementation.
  • To minimize EMI and ensure EMC, it is essential to follow proper PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components. Microchip provides guidelines for EMI and EMC in their documentation (DS50002473A) and application notes (AN1349).
