SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
2.4 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3 mm
AH5773-MP-13 Frequently Asked Questions (FAQs)
A good PCB layout for the AH5773-MP-13 should prioritize thermal management, minimize parasitic inductance, and ensure a low-impedance path for the output. A 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive PCB material, and keeping the junction temperature below 125°C.
The maximum allowed voltage on the EN pin is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
Yes, the AH5773-MP-13 can be used in switching regulator applications, but it's essential to ensure that the device is properly bypassed and that the output is filtered to minimize noise and ripple.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AH5773-MP-13 Overview

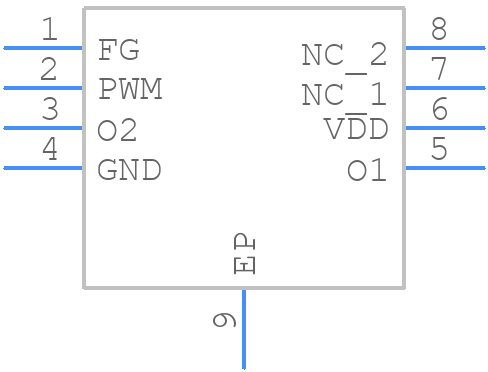

Use the download button to access the AH5773-MP-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AH577,
or try a keyword search, such as Motion Control Electronics
