AK5DCF1-125.0000T - ABRACON

Description: 125 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-SMD, No Lead

Download AK5DCF1-125.0000T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AK5DCF1-125.0000T model

Email notifications will be applied after download.

Send part feedback

Symbol

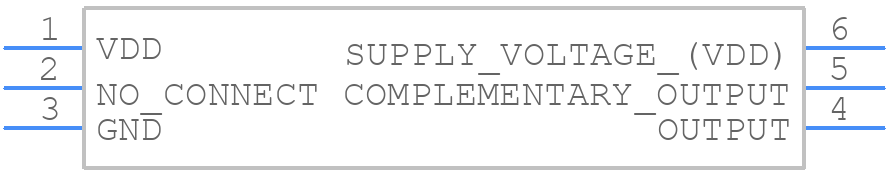

AK5DCF1-125.0000T - ABRACON - PCB symbol

PCB Footprints

AK5DCF1-125.0000T - ABRACON PCB footprint - Other - Other - AK5DCF1-125.0000T-1

3D Models

AK5DCF1-125.0000T - ABRACON - 3D model - Other - AK5DCF1-125.0000T-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AK5DCF1-125.0000T
Part Number AK5DCF1-125.0000T
Manufacturer ABRACON
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AK5DCF1-125.0000T-1
Released Date Jun 4, 2024
Last Modified Date Jun 4, 2024 5:57 AM UTC
Pinout / Pin List Click Here (Member Only)

AK5DCF1-125.0000T Details

Manufacturer Part Number:
AK5DCF1-125.0000T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
Fall Time-Max:
0.5 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
125 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Equivalence Code:
SOLCC6,.12
Packing Method:
TR, 7 INCH
Physical Dimension:
5.0mm x 3.2mm x 1.2mm
Rise Time-Max:
0.5 ns
Supply Voltage-Max:
1.89 V
Supply Voltage-Min:
1.71 V
Supply Voltage-Nom:
1.8 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

AK5DCF1-125.0000T Frequently Asked Questions (FAQs)

The operating temperature range of the AK5DCF1-125.0000T is -40°C to +85°C.
Yes, the AK5DCF1-125.0000T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The typical power consumption of the AK5DCF1-125.0000T is around 10-20mA, depending on the specific application and operating conditions.
Yes, the AK5DCF1-125.0000T is designed to operate in high-vibration environments, with a vibration sensitivity of 10g peak acceleration.
The recommended storage temperature range for the AK5DCF1-125.0000T is -40°C to +125°C.
