AK7DAF1-200.0000T2 footprint, schematic symbol and 3D model by ABRACON

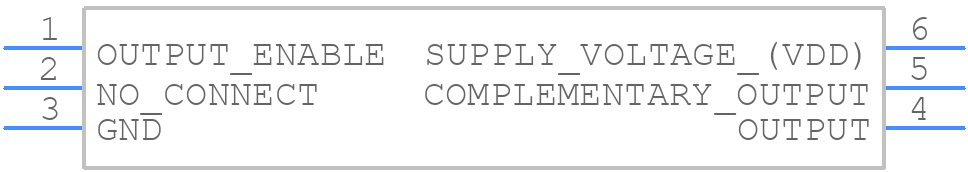

Symbol

PCB Footprints

3D Models

AK7DAF1-200.0000T2 Details

The recommended PCB land pattern for AK7DAF1-200.0000T2 can be found in the Abracon Corporation's application note AN-04, which provides detailed guidelines for PCB layout and design.
To ensure the oscillator starts up correctly, make sure to follow the recommended power-up sequence, provide a stable power supply, and ensure the oscillator is properly decoupled from the power supply noise.
The maximum operating temperature range for AK7DAF1-200.0000T2 is -40°C to +85°C, as specified in the datasheet. However, it's recommended to derate the frequency stability and accuracy at extreme temperatures.
Yes, AK7DAF1-200.0000T2 is designed to operate in high-vibration environments. However, it's recommended to follow the recommended mounting and soldering guidelines to ensure the oscillator's reliability and performance.
To troubleshoot issues with the oscillator's frequency accuracy or stability, check the power supply noise, PCB layout, and decoupling capacitors. Also, ensure the oscillator is properly terminated and the load capacitance is within the recommended range.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the AK7DAF1-200.0000T2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AK7DA, or try a keyword search, such as XO
