AM2634CODFHMZCZRQ1 - Texas Instruments

Description: ARM Microcontrollers - MCU Automotive quad-core Arm Cortex-R5F MCU up to 400 MHz with real-time control and security

Download AM2634CODFHMZCZRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM2634CODFHMZCZRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

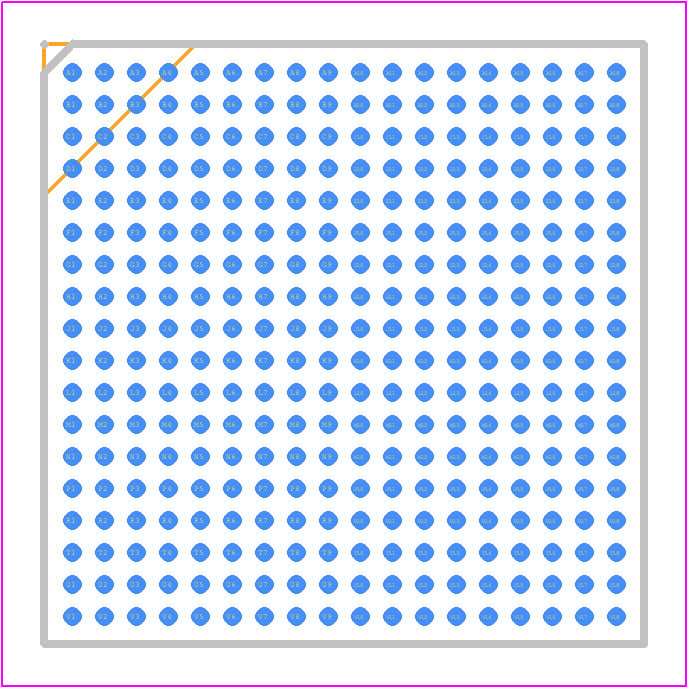

AM2634CODFHMZCZRQ1 - Texas Instruments PCB footprint - BGA - BGA - ZCZ0324A
click to zoom
3D Models
AM2634CODFHMZCZRQ1 - Texas Instruments - 3D model - BGA - ZCZ0324A
click to zoom

AM2634CODFHMZCZRQ1 Details

  • Manufacturer Part Number:

    AM2634CODFHMZCZRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    256KBYTES TCM MEMORY ALSO AVAILABLE

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA324,18X18,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.4 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM2634CODFHMZCZRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AM2634 application note (SLVAE67). It suggests using a 2-layer or 4-layer PCB with a solid ground plane, and placing thermal vias under the device to improve heat dissipation.
  • To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
  • The maximum allowed voltage on the EN (enable) pin is 6V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Yes, the AM2634CODFHMZCZRQ1 is suitable for battery-powered devices due to its low quiescent current (IQ) and low dropout voltage (VDO). However, consider the device's power consumption and battery life requirements when designing your system.
  • To calculate the output voltage ripple and noise, refer to the AM2634 datasheet and application note (SLVAE67). The output voltage ripple and noise can be estimated using the device's output impedance, output capacitance, and switching frequency.
