Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (e.g., SLUAAT96) and design guides (e.g., TIDA-01546). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and reduced electromagnetic interference (EMI).
To minimize power consumption, configure the device to use the lowest possible clock frequency, disable unused peripherals, and use the power-saving features such as the Low-Dropout Regulator (LDO) and the Power-Saving Modes (PSM). Additionally, optimize the firmware to reduce CPU usage and implement power-gating techniques.
To ensure EMC and minimize EMI, follow the recommended PCB layout and design guidelines, use shielding and grounding techniques, and implement EMI filtering on the power supply and signal lines. Additionally, consider using a metal shield or a Faraday cage to enclose the device.
Use the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) and the XDS110 debug probe to debug and troubleshoot issues. Additionally, consult the device's datasheet, user guides, and application notes for troubleshooting tips and guidelines.
To operate the device in harsh environments, ensure the PCB is designed with moisture-resistant and temperature-resistant components. Implement protective measures such as conformal coating, potting, or encapsulation to protect the device from environmental stressors. Consult the device's datasheet and application notes for specific guidelines on operating temperature, humidity, and vibration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM263P4ASOKFZCZRQ1 Overview

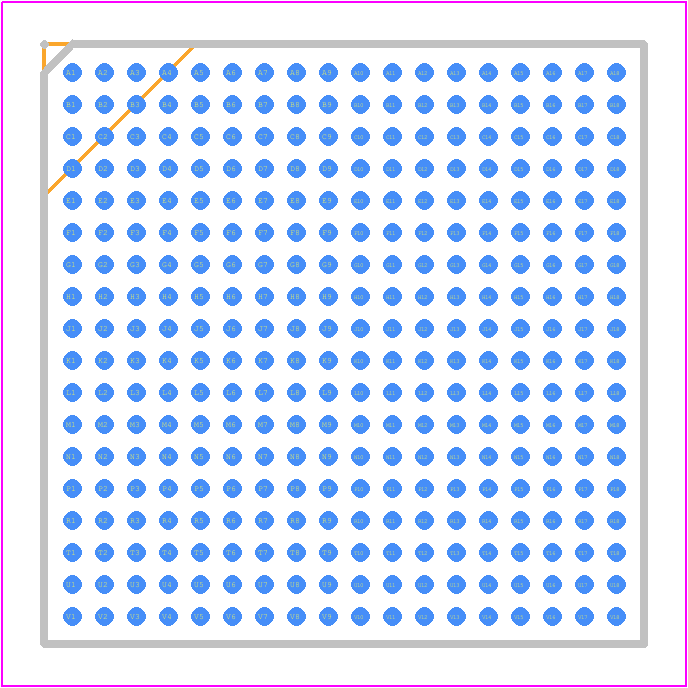

Use the download button to access the AM263P4ASOKFZCZRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM263,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
