AM2732ADRFGQZCERQ1 - Texas Instruments

Description: ARM® Cortex®-R5F Microprocessor IC - 2 Core, 32-Bit 400MHz 285-NFBGA (13x13)

Download AM2732ADRFGQZCERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM2732ADRFGQZCERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

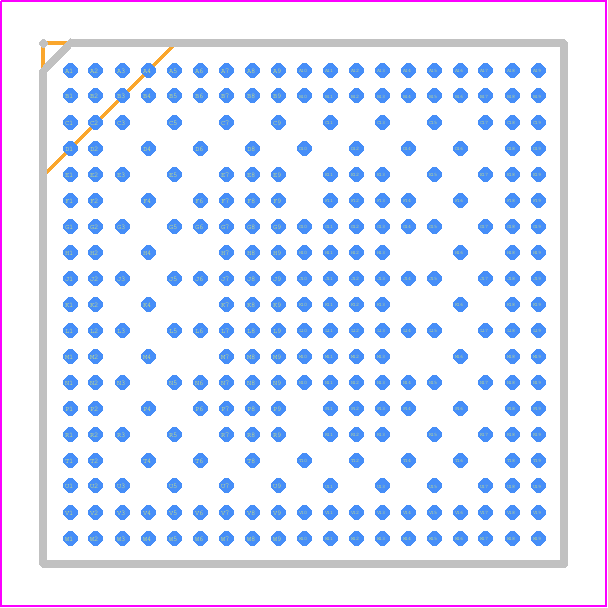

AM2732ADRFGQZCERQ1 - Texas Instruments PCB footprint - BGA - BGA - ZCE0285A-C01
click to zoom
3D Models
AM2732ADRFGQZCERQ1 - Texas Instruments - 3D model - BGA - ZCE0285A-C01
click to zoom

AM2732ADRFGQZCERQ1 Details

  • Manufacturer Part Number:

    AM2732ADRFGQZCERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PBGA-B285

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    285

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA285,19X19,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM2732ADRFGQZCERQ1 Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency is 12 MHz, but it can operate with frequencies between 10 MHz and 20 MHz.
  • To minimize power consumption, use the Power-Down mode (LPM3) or Low Power Mode (LPM4) by setting the corresponding bits in the SYSCTL_LPMCR register. Additionally, disable unused peripherals and reduce the clock frequency.
  • Yes, the AM2732ADRFGQZCERQ1 has an external memory interface that supports asynchronous and synchronous modes. You can connect external memory devices, such as flash or SRAM, using the 16-bit external memory interface.
  • The AM2732ADRFGQZCERQ1 has a built-in watchdog timer (WDT) that can be enabled by setting the WDTCTL register. You can configure the WDT interval and reset mode according to your application's requirements.
  • The AM2732ADRFGQZCERQ1 can operate in the industrial temperature range of -40°C to 85°C.
