AM2732CDRFHQZCERQ1 - Texas Instruments

Description: ARM® Cortex®-R5F Sitara™ Microcontroller IC 32-Bit Dual-Core 400MHz 256KB (256K x 8) Tightly Coupled Memory (TCM) 285-NFBGA (13x13)

Download AM2732CDRFHQZCERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM2732CDRFHQZCERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

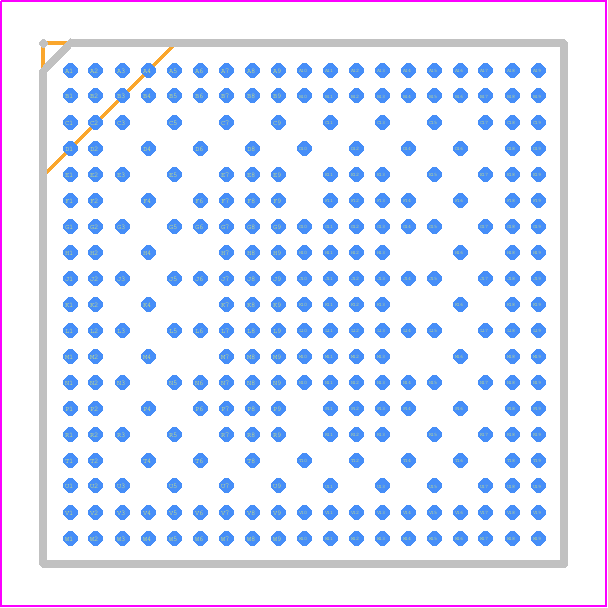

AM2732CDRFHQZCERQ1 - Texas Instruments PCB footprint - BGA - BGA - ZCE0285A-C01
click to zoom
3D Models
AM2732CDRFHQZCERQ1 - Texas Instruments - 3D model - BGA - ZCE0285A-C01
click to zoom

AM2732CDRFHQZCERQ1 Details

  • Manufacturer Part Number:

    AM2732CDRFHQZCERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Clock Frequency-Max:

    400 MHz

  • JESD-30 Code:

    S-PBGA-B285

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    285

  • Operating Temperature-Max:

    140 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA285,19X19,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM2732CDRFHQZCERQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guidelines in the 'Thermal Considerations' section of the datasheet. Additionally, the company offers a thermal calculator tool to help designers optimize their PCB layout.
  • The output capacitor selection depends on the output voltage, output ripple, and transient response. Texas Instruments provides a capacitor selection guide in the 'Output Capacitor Selection' section of the datasheet. Designers can also use the company's WEBENCH Power Designer tool to select the optimal output capacitor.
  • The maximum input voltage rating for the AM2732CDRFHQZCERQ1 is 5.5V. Exceeding this voltage may cause permanent damage to the device.
  • To ensure EMI compliance, designers should follow proper PCB layout and routing guidelines, use a metal shield or screen around the device, and add EMI filters or chokes as necessary. Texas Instruments provides EMI compliance guidelines in the 'Electromagnetic Interference' section of the datasheet.
  • The AM2732CDRFHQZCERQ1 has a soft-start feature that helps to reduce inrush current and voltage transitions during power-up. During power-down, the device enters a low-power shutdown mode to reduce power consumption. The power-up and power-down sequences are described in the 'Power-Up/Power-Down Sequencing' section of the datasheet.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM2732CDRFHQZCERQ1 Overview

Use the download button to access the AM2732CDRFHQZCERQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM273, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
