AM4372BZDN80 - Texas Instruments

Description: Microprocessors - MPU AEGIS 1.3 .8G COMM TEMP

Download AM4372BZDN80 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM4372BZDN80 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

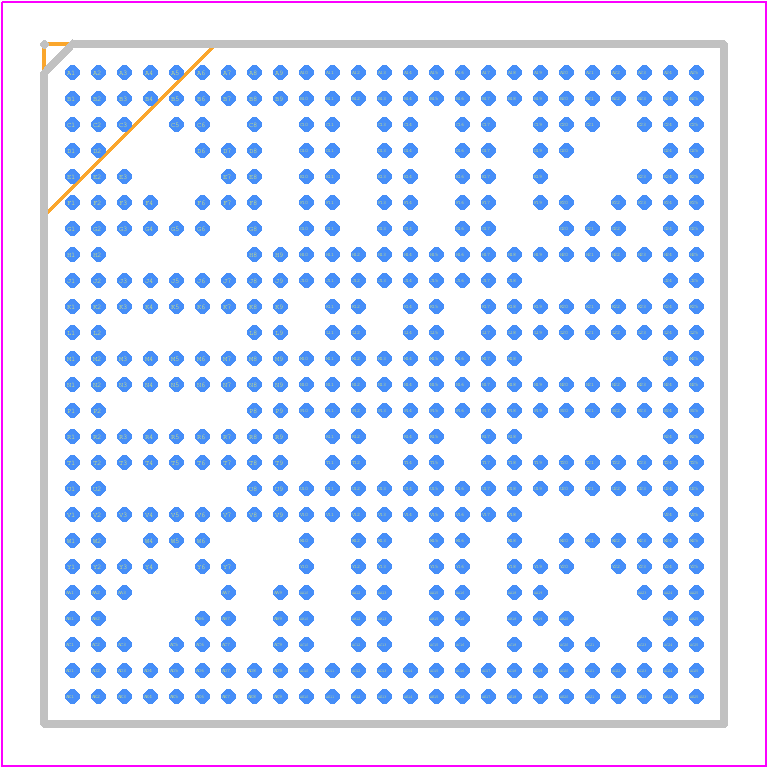

AM4372BZDN80 - Texas Instruments PCB footprint - BGA - BGA - ZDN (S-PBGA-N491)
click to zoom
3D Models
AM4372BZDN80 - Texas Instruments - 3D model - BGA - ZDN (S-PBGA-N491)
click to zoom

AM4372BZDN80 Details

  • Manufacturer Part Number:

    AM4372BZDN80

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2016-08-17

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B491

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    491

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA491,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.326 V

  • Supply Voltage-Min:

    1.21 V

  • Supply Voltage-Nom:

    1.26 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM4372BZDN80 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AM4372BZDN80 is -40°C to 90°C (industrial grade) and -40°C to 85°C (commercial grade).
  • The clock sources for the AM4372BZDN80 can be configured using the Power, Reset, and Clock Management (PRCM) module. The PRCM module allows you to select from various clock sources, such as the internal oscillator, external crystal oscillator, or external clock source.
  • The maximum frequency of the Cortex-A9 processor in the AM4372BZDN80 is 1 GHz.
  • Power management in the AM4372BZDN80 can be implemented using the Power, Reset, and Clock Management (PRCM) module. The PRCM module allows you to control power modes, such as idle, sleep, and shutdown, as well as configure voltage regulators and clock frequencies to optimize power consumption.
  • The maximum amount of DDR3 memory that can be used with the AM4372BZDN80 is 2 GB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM4372BZDN80 Overview

Use the download button to access the AM4372BZDN80 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM437, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
