AM4376BZDND80 - Texas Instruments

AM4376BZDND80 Details

• Manufacturer Part Number:

  AM4376BZDND80

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

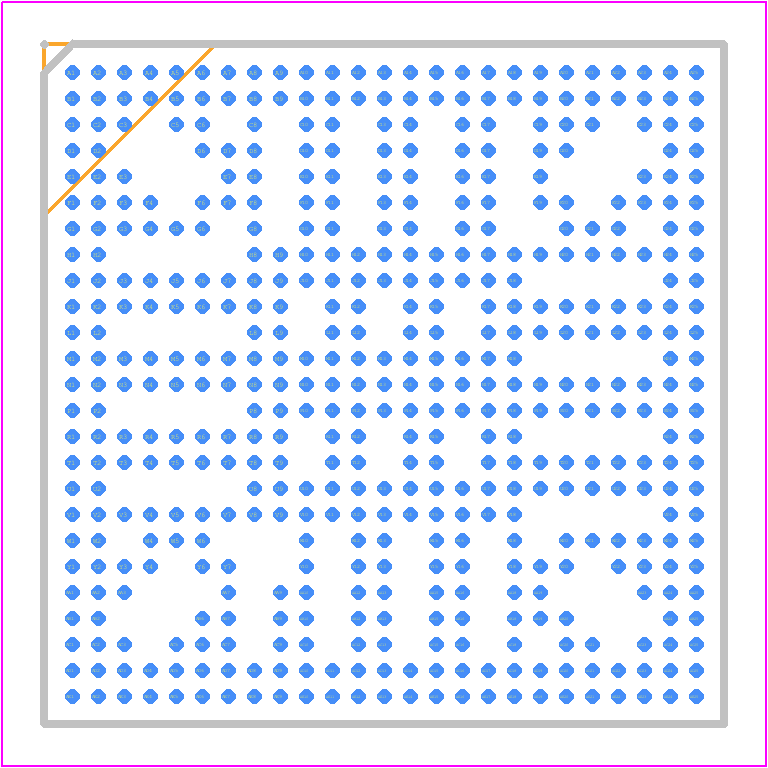

• Part Package Code:

  BGA

• Pin Count:

  491

• Country Of Origin:

  Philippines

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.50

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• JESD-30 Code:

  S-PBGA-B491

• Length:

  17 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  491

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA491,25X25,25

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.3 mm

• Supply Voltage-Max:

  1.326 V

• Supply Voltage-Min:

  1.21 V

• Supply Voltage-Nom:

  1.26 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  SoC
