AM4376BZDNA100 - Texas Instruments

Description: MPU AM437x RISC 32bit 1GHz 491-Pin NFBGA

Download AM4376BZDNA100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM4376BZDNA100 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

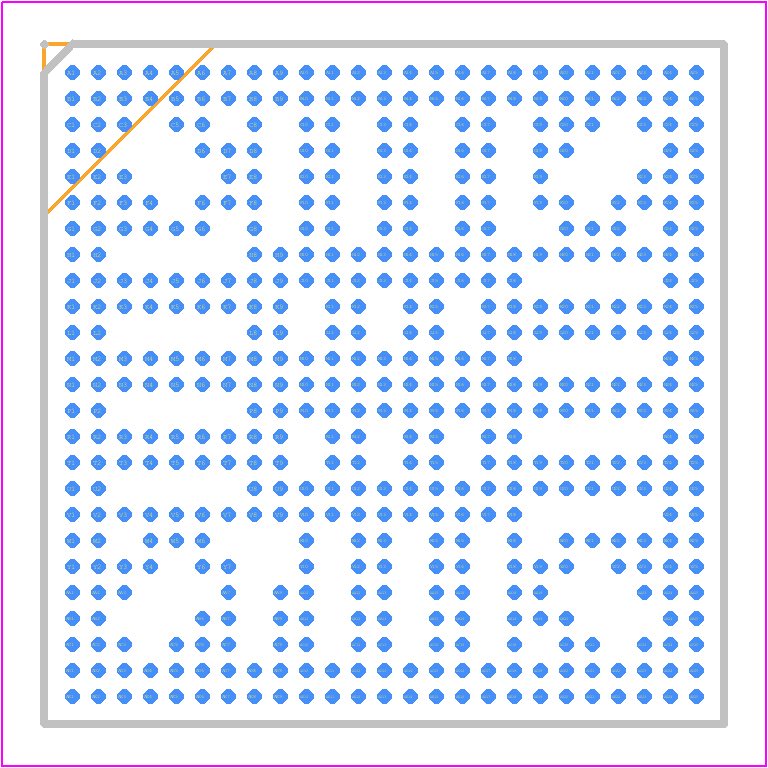

AM4376BZDNA100 - Texas Instruments PCB footprint - BGA - BGA - ZDN (S-PBGA-N491)
click to zoom
3D Models
AM4376BZDNA100 - Texas Instruments - 3D model - BGA - ZDN (S-PBGA-N491)
click to zoom

AM4376BZDNA100 Details

  • Manufacturer Part Number:

    AM4376BZDNA100

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    491

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B491

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    491

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA491,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.378 V

  • Supply Voltage-Min:

    1.272 V

  • Supply Voltage-Nom:

    1.325 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM4376BZDNA100 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the I/O voltage (VDD_SHVx) and then the PLL voltage (VDD_PLL). This ensures proper device operation and prevents damage.
  • The AM4376BZDNA100 has multiple clock sources, including an internal oscillator, external crystal oscillator, and PLL. The clock sources can be configured using the Clock Domain Control (CDC) module. Refer to the TRM (Technical Reference Manual) for detailed configuration information.
  • The maximum operating frequency of the AM4376BZDNA100 is 1 GHz. However, the actual operating frequency may vary depending on the specific use case and system design.
  • The AM4376BZDNA100 has multiple power domains that can be controlled using the Power and Sleep Controller (PSC). The PSC allows for dynamic voltage and frequency scaling, as well as power gating and sleep modes. Refer to the TRM for detailed information on power management.
  • The AM4376BZDNA100 supports up to 512 MB of RAM and 1 GB of flash memory. However, the actual memory configuration may vary depending on the specific use case and system design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM4376BZDNA100 Overview

Use the download button to access the AM4376BZDNA100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM437, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
