AM4378BZDNA100 - Texas Instruments

Description: Sitara Processor: Arm Cortex-A9, Secure Boot, PRU-ICSS, 3D graphics

Download AM4378BZDNA100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM4378BZDNA100 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

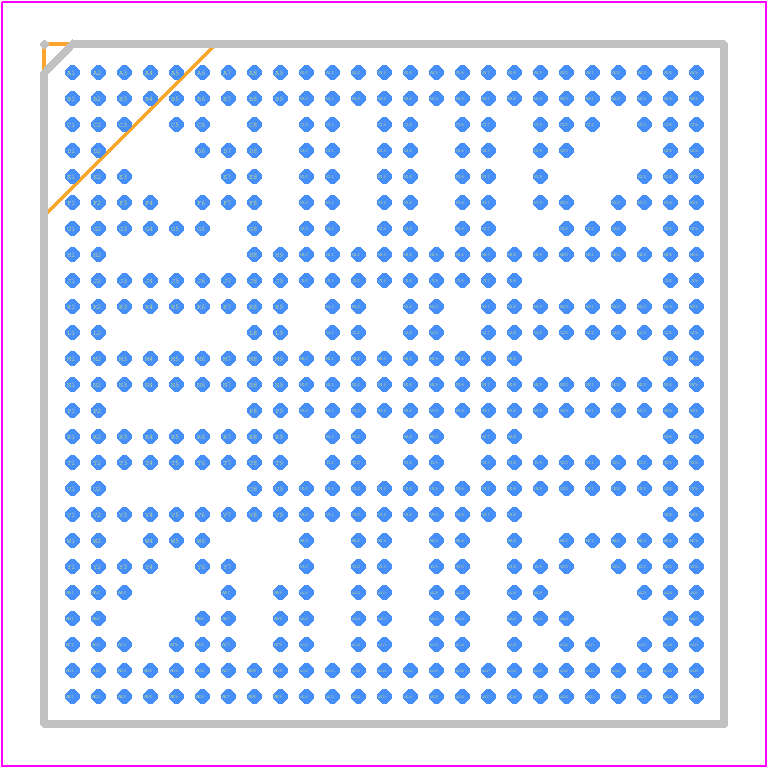

AM4378BZDNA100 - Texas Instruments PCB footprint - BGA - BGA - ZDN (S-PBGA-N491)
click to zoom
3D Models
AM4378BZDNA100 - Texas Instruments - 3D model - BGA - ZDN (S-PBGA-N491)
click to zoom

AM4378BZDNA100 Details

  • Manufacturer Part Number:

    AM4378BZDNA100

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    491

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B491

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    491

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA491,25X25,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.3 mm

  • Supply Voltage-Max:

    1.378 V

  • Supply Voltage-Min:

    1.272 V

  • Supply Voltage-Nom:

    1.325 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM4378BZDNA100 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the I/O voltage (VDD_SHVx) and then the PLL voltage (VDD_PLL). This ensures proper device operation and prevents damage.
  • The clock sources can be configured using the Clock Domain Control (CDC) module. The CDC module allows you to select the clock source, configure the clock frequency, and enable or disable the clock outputs.
  • The maximum operating frequency of the AM4378BZDNA100 is 1 GHz. However, the actual operating frequency may vary depending on the specific use case and system design.
  • Power management on the AM4378BZDNA100 can be implemented using the Power and Sleep Controller (PSC) module. The PSC module allows you to configure the power modes, set the power transition latency, and monitor the power consumption.
  • The SYS_BOOT pins are used to configure the boot mode of the device. They determine the boot source, such as booting from NAND, SPI, or UART, and configure the boot sequence.
