The recommended power-on sequence is to power up the core voltage (VDD_CORE) first, followed by the input/output voltage (VDD_IO). This ensures proper device operation and prevents latch-up or damage.
The AM5706BCBDJ has multiple clock sources, including an internal oscillator, external crystal oscillator, and PLL. The clock sources can be configured using the Clock Domain Control (CDC) module and the Power, Reset, and Clock Management (PRCM) module. Refer to the device's technical reference manual for detailed configuration information.
The AM5706BCBDJ has an industrial temperature range of -40°C to 85°C. However, the device can operate at extended temperatures with reduced performance and reliability. Consult the datasheet and application notes for more information on temperature-related considerations.
The AM5706BCBDJ supports secure boot through the use of a secure boot loader and encryption. The device has a built-in ROM boot loader that can be configured to authenticate and decrypt firmware images. Additionally, the device supports trusted execution environments (TEEs) and secure boot mechanisms like ARM TrustZone.
The AM5706BCBDJ's DDR interface has limitations on the maximum frequency, data width, and capacity. The device supports up to DDR3L-1333, with a maximum data width of 32 bits and a capacity of up to 2 GB. Consult the datasheet and application notes for more information on DDR interface configuration and limitations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM5706BCBDJ Overview

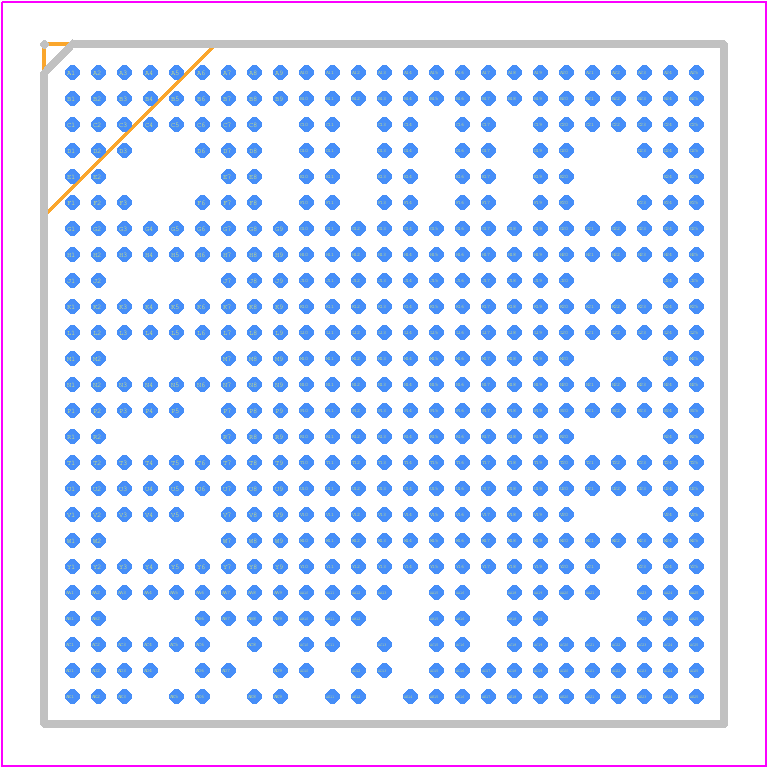

Use the download button to access the AM5706BCBDJ schematic symbol, PCB footprint, and 3D model.
