AM5729BABCX - Texas Instruments

Description: AM572x Sitara™ Processors Silicon Revision 2.0

Download AM5729BABCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM5729BABCX - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

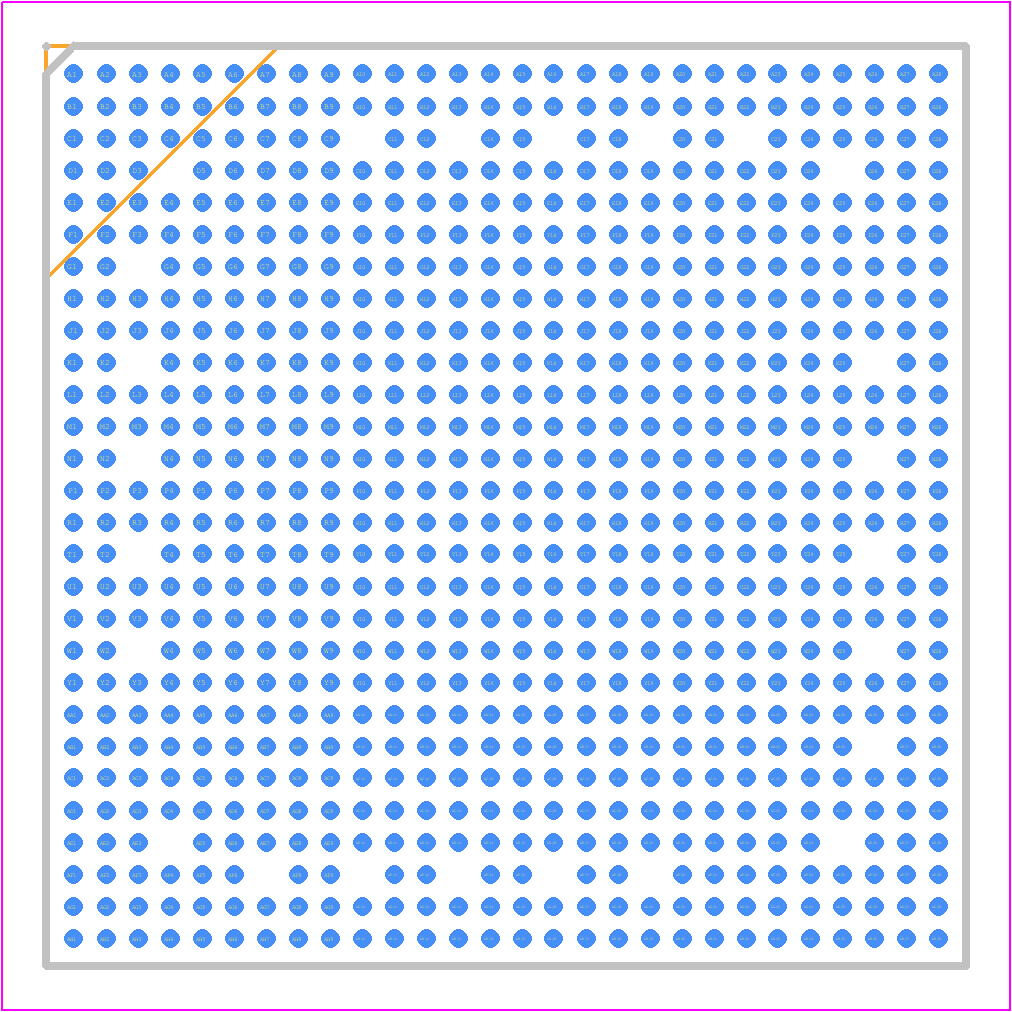

AM5729BABCX - Texas Instruments PCB footprint - BGA - BGA - ABC (S-PBGA-N760)
click to zoom
3D Models
AM5729BABCX - Texas Instruments - 3D model - BGA - ABC (S-PBGA-N760)
click to zoom

AM5729BABCX Details

  • Manufacturer Part Number:

    AM5729BABCX

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2019-05-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B760

  • Length:

    23 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    760

  • Operating Temperature-Max:

    90 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA760,28X28,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.96 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.11 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM5729BABCX Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the AM5729BABCX is -40°C to 100°C.
  • The DDR memory interface on the AM5729BABCX can be configured using the DDR PHY register settings and the DDR controller register settings. Refer to the TRM (Technical Reference Manual) for detailed information.
  • The maximum frequency of the Cortex-A15 core on the AM5729BABCX is 1.5 GHz.
  • The PRU-ICSS on the AM5729BABCX can be used for industrial communication protocols such as EtherCAT, PROFINET, and EtherNet/IP. Refer to the PRU-ICSS TRM for detailed information on programming and using the PRU-ICSS.
  • The power consumption of the AM5729BABCX varies depending on the operating frequency, voltage, and usage. Refer to the datasheet for typical power consumption values.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AM5729BABCX Overview

Use the download button to access the AM5729BABCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM572, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
