AM6231ASGGGAALW - Texas Instruments

Description: Microprocessors - MPU Internet of Things (IoT) and gateway SoC with Arm Cortex-A53-based object and gesture recognition

Download AM6231ASGGGAALW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM6231ASGGGAALW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

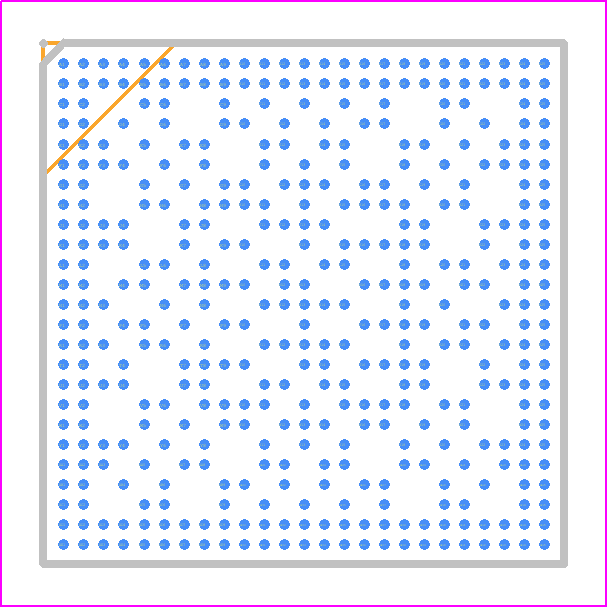

AM6231ASGGGAALW - Texas Instruments PCB footprint - BGA - BGA - ALW0425A
click to zoom
3D Models
AM6231ASGGGAALW - Texas Instruments - 3D model - BGA - ALW0425A
click to zoom

AM6231ASGGGAALW Details

  • Manufacturer Part Number:

    AM6231ASGGGAALW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B425

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    425

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA425,25X25,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Screening Level:

    ISO 26262

  • Seated Height-Max:

    0.89 mm

  • Speed:

    1400 MHz

  • Supply Voltage-Max:

    0.79 V

  • Supply Voltage-Min:

    0.715 V

  • Supply Voltage-Nom:

    0.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM6231ASGGGAALW Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 2-layer or 4-layer PCB with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a heat sink if necessary, and ensure proper airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V to 5V to ensure reliable operation.
  • Texas Instruments recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect the device from electrostatic discharge. Additionally, follow proper handling and storage procedures to prevent ESD damage.
  • The recommended power-up sequence is to apply power to the VCC pin first, followed by the input signals. This ensures that the internal biasing and voltage regulators are properly initialized before the input signals are applied.
