Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow additional guidelines for optimal thermal performance. Ensure a solid ground plane, use thermal vias, and keep the component away from heat sources. A 4-layer PCB with a dedicated power plane is recommended.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 1-10 μF. X5R or X7R ceramic capacitors are suitable for most applications.
The recommended operating temperature range for the AM62A74AUMSIAMBRQ1 is -40°C to 125°C. However, it's essential to consider the junction temperature (TJ) which should not exceed 150°C. Ensure proper thermal design and heat dissipation to maintain a safe operating temperature.
To ensure EMC, follow proper PCB layout guidelines, use a shielded enclosure, and add EMI filters or ferrite beads on the input and output lines. Additionally, consider using a common-mode choke and a TVS diode for added protection.
The maximum output current capability of the AM62A74AUMSIAMBRQ1 is 1 A per channel. However, it's essential to consider the thermal limitations and ensure the device is operated within the recommended operating conditions to avoid overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM62A74AUMSIAMBRQ1 Overview

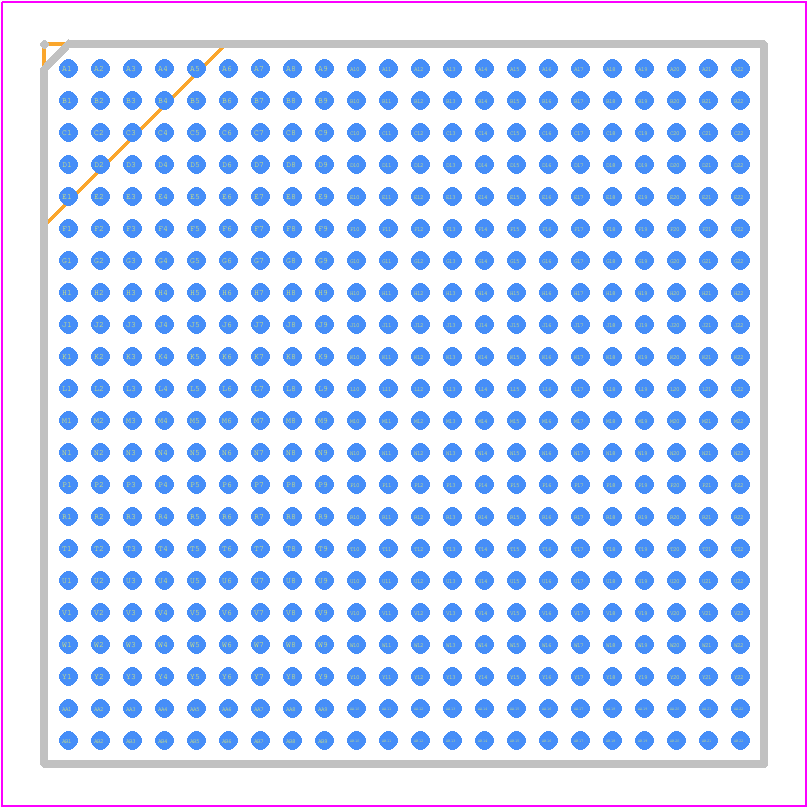

Use the download button to access the AM62A74AUMSIAMBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM62A,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
