Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLVAE03) and layout files (AM64xx_PCB_Layout_Guide.zip). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
To minimize power consumption, configure the device to use the lowest possible clock frequency, disable unused peripherals, and use the power-saving features like idle mode, sleep mode, and shutdown mode. Additionally, optimize the voltage regulator settings and use a low-dropout linear regulator (LDO) to reduce power consumption.
To minimize EMI and ensure EMC, follow proper PCB layout and design guidelines, use shielding and grounding techniques, and implement EMI filters. Texas Instruments provides EMI and EMC guidelines in their application notes (SLVAE03) and documentation.
Use the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) and the XDS110 debug probe to debug and troubleshoot issues. Additionally, consult the AM6411BSCGHAALV technical reference manual, application notes, and online forums for troubleshooting guides and FAQs.
The AM6411BSCGHAALV has an operating temperature range of -40°C to 105°C (ambient temperature) and a junction temperature (TJ) of up to 125°C. Ensure proper thermal management and heat dissipation to prevent overheating and damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM6411BSCGHAALV Overview

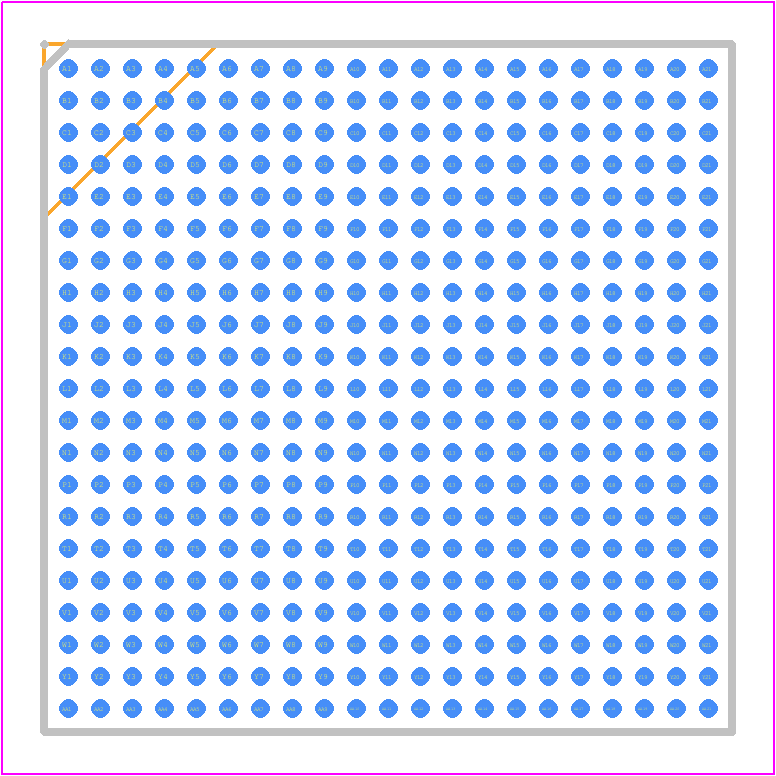

Use the download button to access the AM6411BSCGHAALV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM641,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
