AM6412BSCGHAALV - Texas Instruments

Description: ARM® Cortex®-A53, ARM® Cortex®-M5F, ARM® Cortex®-R5F Microprocessor IC Sitara™ 4 Core, 64-Bit 1GHz, 400MHz, 800MHz 441-FCBGA (17.2x17.2)

Download AM6412BSCGHAALV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AM6412BSCGHAALV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

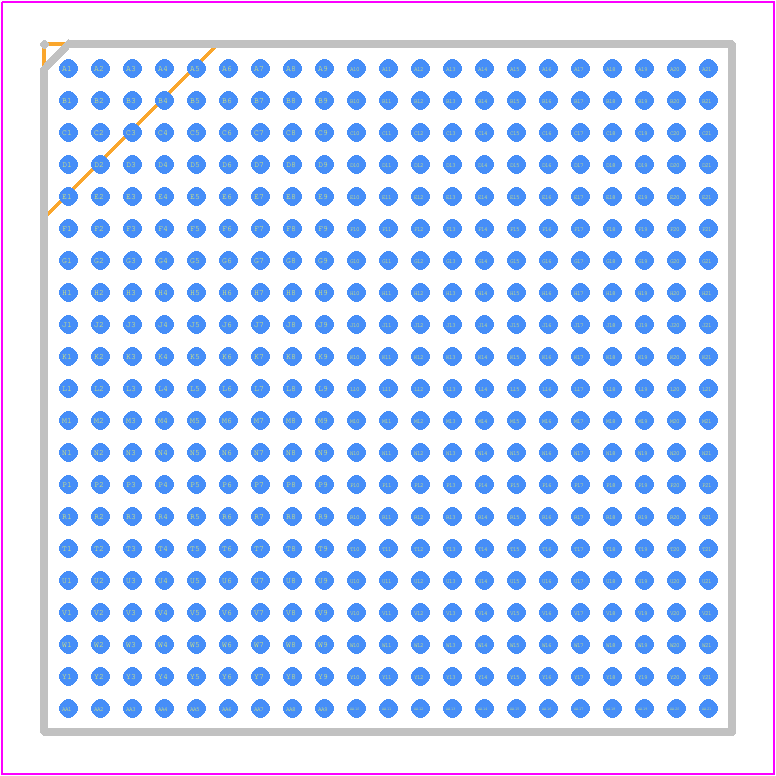

AM6412BSCGHAALV - Texas Instruments PCB footprint - BGA - BGA - ALV0441A_2024
click to zoom
3D Models
AM6412BSCGHAALV - Texas Instruments - 3D model - BGA - ALV0441A_2024
click to zoom

AM6412BSCGHAALV Details

  • Manufacturer Part Number:

    AM6412BSCGHAALV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B441

  • Length:

    17.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    441

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA441,21X21,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.652 mm

  • Supply Voltage-Max:

    0.79 V

  • Supply Voltage-Min:

    0.715 V

  • Supply Voltage-Nom:

    0.75 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17.2 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

AM6412BSCGHAALV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in their application notes (SLUA623) and layout files (AM64xx_PCB_Layout_Guide.zip). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
  • The AM6412BSCGHAALV has various low-power modes, such as idle, standby, and shutdown. You can configure these modes using the Power Management Interface (PMIC) and the Power Domain Controller (PDC). Refer to the device's technical reference manual (SPRUHZ6) for detailed information on power-saving features and configuration.
  • The device has multiple clock domains, and clock domain crossing requires careful consideration to avoid metastability issues. Texas Instruments provides guidelines for clocking and clock domain crossing in their application notes (SPRAAS5) and technical reference manual (SPRUHZ6). It's essential to follow these guidelines to ensure reliable operation.
  • The device supports secure boot and firmware updates through its Security and Fuse (SAFU) module. Texas Instruments provides documentation and software development kits (SDKs) for secure boot and firmware updates. Refer to the device's technical reference manual (SPRUHZ6) and the TI Security SDK for detailed information and implementation guidelines.
  • The device is rated for operation up to 125°C (TJ). However, high-temperature operation requires careful consideration of thermal management, power dissipation, and component selection. Texas Instruments provides guidelines for high-temperature operation in their application notes (SLUA623) and technical reference manual (SPRUHZ6). It's essential to follow these guidelines to ensure reliable operation in high-temperature environments.
