Texas Instruments provides a recommended PCB layout and thermal management guide in the AM64x Sitara Processors Technical Reference Manual (SPRUHZ6). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
The AM6421BSFFHAALV has a complex power management system. Refer to the Power Management section in the datasheet and the AM64x Power Management User Guide (SPRUHZ7) for detailed information on configuring the voltage regulators, power modes, and power sequencing for your specific application.
When designing a power supply for the AM6421BSFFHAALV, consider the maximum current requirements, voltage tolerances, and power sequencing. Ensure the power supply can handle the processor's dynamic voltage and frequency scaling. TI provides a Power Supply Design Guide (SLUUAC7) to help with this process.
To optimize the DDR memory interface, follow the guidelines in the AM64x DDR Memory Interface User Guide (SPRUHZ8). This includes selecting the correct DDR type, configuring the memory timings, and ensuring signal integrity through proper PCB layout and routing.
TI provides a range of debugging tools, including the XDS560v2 emulator and the CCS (Code Composer Studio) development environment. Familiarize yourself with these tools and follow the debugging guidelines in the AM64x Debug and Trace User Guide (SPRUHZ9) to efficiently troubleshoot and debug your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM6421BSFFHAALV Overview

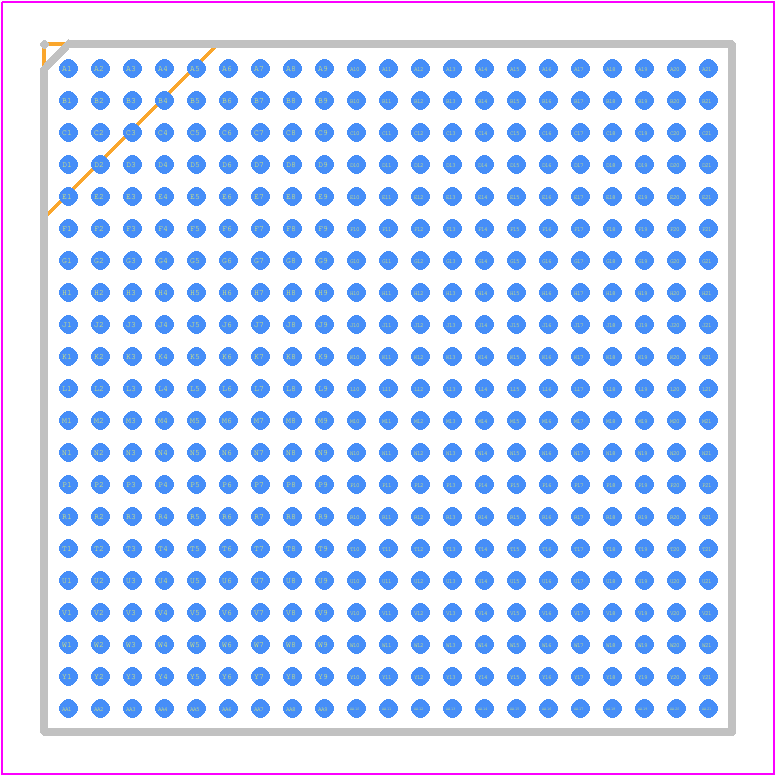

Use the download button to access the AM6421BSFFHAALV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM642,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
