Texas Instruments provides a recommended PCB layout and thermal management guide in the AM64x Sitara Processors Technical Reference Manual (SPRUHZ6). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
The AM6421BSFGHAALV has a complex power management system. TI provides a Power Management Guide (SPRUHZ7) that explains how to configure the voltage regulators, power domains, and clocking for specific use cases. Additionally, the TI Power Designer tool can help with power tree design and configuration.
When designing a power supply for the AM6421BSFGHAALV, consider the maximum current requirements, voltage tolerance, and power sequencing. TI recommends using a power supply with a high current capability, low voltage ripple, and a soft-start mechanism to prevent inrush currents. The TI Power Supply Design Guide (SLUP281) provides more detailed information.
To optimize the DDR memory interface, follow the guidelines in the AM64x DDR Memory Interface Guide (SPRUHZ8). This includes selecting the correct DDR type, configuring the memory timing, and ensuring signal integrity. TI also provides a DDR Memory Calculator tool to help with memory configuration and timing analysis.
To secure the AM6421BSFGHAALV-based system, implement a multi-layered security approach. This includes using secure boot mechanisms, encrypting data and firmware, and implementing access controls. TI provides a Security Guide (SPRUHZ9) that outlines the security features and best practices for the AM64x family.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AM6421BSFGHAALV Overview

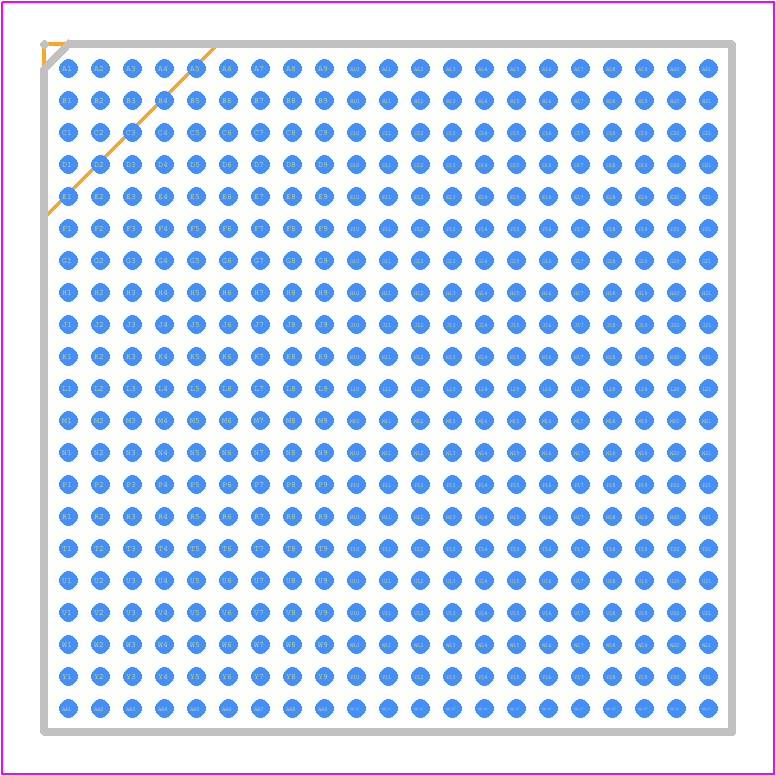

Use the download button to access the AM6421BSFGHAALV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AM642,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
