- Part Number AM6422BSDGHAALV
- Manufacturer Texas Instruments
- Pin Count 441
- Part Category Integrated Circuit
- Package Category BGA

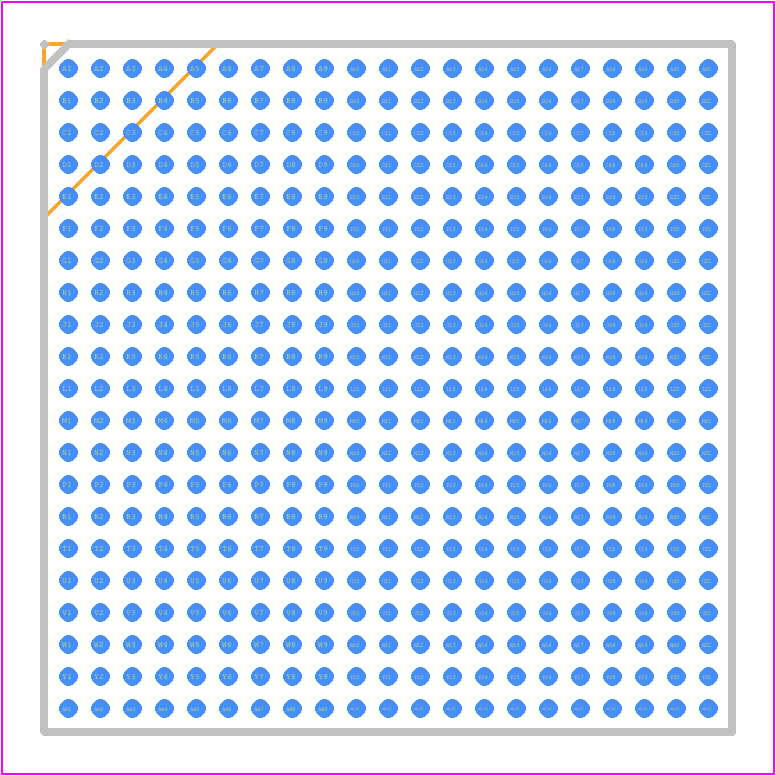

- Footprint Name BGA - ALV0441A
- Released Date Oct 19, 2024
- Last Modified Date Oct 19, 2024 6:23 AM UTC
- Pinout / Pin List Click Here (Member Only)
AM6422BSDGHAALV Details
-
Manufacturer Part Number:
AM6422BSDGHAALV
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
5A992.C
-
HTS Code:
8542.31.00.50
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
JESD-30 Code:
S-PBGA-B441
-
Length:
17.2 mm
AM6422BSDGHAALV Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout and thermal management guide in the AM64x Sitara Processors Technical Reference Manual (SPRUHZ6). It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and signal integrity.
-
The AM6422BSDGHAALV has a complex power management system. Refer to the Power Management section in the datasheet and the AM64x Power Management User Guide (SPRUHZ7) for detailed information on configuring the voltage regulators, power modes, and power sequencing.
-
When selecting DDR memory, ensure it meets the JEDEC DDR4 specification and is compatible with the AM6422BSDGHAALV's DDR interface. Refer to the DDR Memory Interface section in the datasheet and the AM64x DDR Memory Interface User Guide (SPRUHZ8) for configuration and timing requirements.
-
The AM6422BSDGHAALV supports secure boot through the Trusted Execution Environment (TEE) and Secure Boot Loader (SBL). Refer to the Security section in the datasheet and the AM64x Security User Guide (SPRUHZ9) for information on implementing secure boot, encryption, and authentication mechanisms.
-
The AM6422BSDGHAALV's integrated GPU and video acceleration units have specific limitations and requirements. Refer to the Graphics and Video Acceleration section in the datasheet and the AM64x Graphics and Video Acceleration User Guide (SPRUHZA) for information on supported formats, resolutions, and performance considerations.
