A good PCB layout for the AMC1035DR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended range.
The recommended power-up sequence for the AMC1035DR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This sequence helps prevent damage or incorrect operation due to voltage differences between the analog and digital domains.
To handle the AMC1035DR's output data, use a FIFO or a buffer to store the data temporarily, and then transfer it to a microcontroller or a processor for further processing. It's also important to ensure the data is properly synchronized with the clock signal and that the data is not corrupted during transmission.
Some common pitfalls to avoid when designing with the AMC1035DR include not following the recommended PCB layout, not properly calibrating the device, not using a sufficient decoupling capacitor, and not ensuring the input signals are within the recommended range. Additionally, not following the recommended power-up sequence and not properly handling the output data can also lead to incorrect operation or damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1035DR Overview

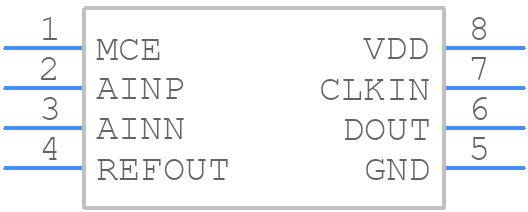

Use the download button to access the AMC1035DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC10,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
