A good PCB layout for the AMC1035QDRQ1 involves separating the analog and digital grounds, using a solid ground plane, and keeping the analog and digital signal traces separate. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and power supply voltage.
The recommended power-up sequence for the AMC1035QDRQ1 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device powers up correctly and prevents damage or malfunction.
To handle the AMC1035QDRQ1's output data, it's recommended to use a FIFO or a buffer to store the data temporarily, and then transfer it to a microcontroller or a processor for further processing. It's also important to ensure proper synchronization of the data transfer and to handle any potential errors or exceptions.
Some common pitfalls to avoid when designing with the AMC1035QDRQ1 include not following the recommended PCB layout, not properly calibrating the device, not handling the output data correctly, and not ensuring the device is operated within its specified temperature range and power supply voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1035QDRQ1 Overview

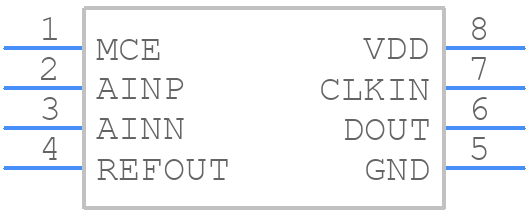

Use the download button to access the AMC1035QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC10,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
