AMC1100DUBR - Texas Instruments

Description: ±250 mV-Input, Low-Cost Basic Isolated Amplifier for Current Sensing

Download AMC1100DUBR Model

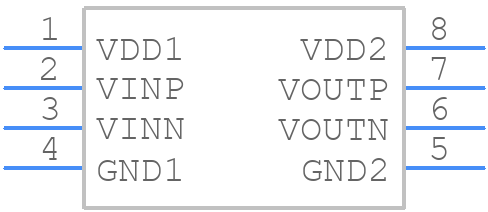

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AMC1100DUBR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DUB0008A
click to zoom
3D Models
AMC1100DUBR - Texas Instruments  - 3D model - Small Outline Packages - DUB0008A
click to zoom

AMC1100DUBR Details

  • Manufacturer Part Number:

    AMC1100DUBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.63

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Common Mode Voltage-Max:

    5.5 V

  • Input Offset Voltage-Max:

    1500 µV

  • Isolation Voltage-Min:

    800 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    9.5 mm

  • Moisture Sensitivity Level:

    3

  • Non-linearity-Max:

    0.075%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    GWDIP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.85 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.1

  • Width:

    6.62 mm
