Texas Instruments provides a recommended PCB layout in the AMC1106E05DWVR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To handle high-frequency noise, use a low-pass filter or a ferrite bead in series with the power supply lines, and ensure that the PCB layout is designed to minimize noise coupling. Additionally, use shielding and grounding techniques to reduce electromagnetic interference (EMI).
The AMC1106E05DWVR has an operating temperature range of -40°C to 125°C, but it's recommended to operate within the -20°C to 85°C range for optimal performance and reliability.
Yes, the AMC1106E05DWVR is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and soldering techniques to ensure reliable operation. Additionally, consider using a vibration-resistant mounting method, such as a screw-down or adhesive mounting, to secure the device.
To troubleshoot issues with the AMC1106E05DWVR, start by checking the power supply voltage, input signals, and output connections. Use an oscilloscope to verify the input and output waveforms, and check for any signs of overheating or physical damage. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1106E05DWVR Overview

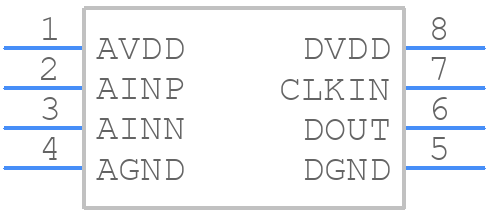

Use the download button to access the AMC1106E05DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
