Texas Instruments provides a recommended PCB layout in the AMC1106M05DWV evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To handle high-frequency noise, use proper PCB layout techniques, such as separating analog and digital grounds, using a solid ground plane, and adding decoupling capacitors. Additionally, consider using a common-mode filter or a ferrite bead to filter out high-frequency noise.
The maximum allowed voltage on the AMC1106M05DWV's input pins is 6.5V. To protect against overvoltage, use voltage-limiting resistors, zener diodes, or overvoltage protection (OVP) circuits to clamp the input voltage to a safe level.
To ensure accurate measurements, calibrate the AMC1106M05DWV at multiple temperatures, and consider using temperature compensation techniques, such as using a thermistor or a temperature sensor to correct for temperature-related errors.
The recommended power-up sequence is to power up the analog supply (VCCA) before the digital supply (VCCD). For power-down and reset, follow the sequence outlined in the datasheet, and consider using a power-on reset (POR) circuit to ensure a clean reset.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1106M05DWV Overview

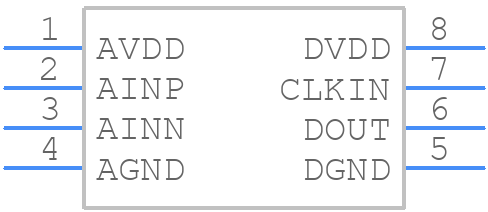

Use the download button to access the AMC1106M05DWV schematic symbol, PCB footprint, and 3D model.
