A good PCB layout for the AMC1200BDUBR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure accurate voltage measurement, it's essential to use a high-precision voltage reference, such as the Texas Instruments REF5025. Additionally, using a low-noise, low-temperature-coefficient resistor in the voltage divider network can help to improve accuracy. It's also important to follow proper PCB layout and routing guidelines to minimize noise and interference.
A recommended input filter configuration for the AMC1200BDUBR involves using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz. This can be achieved using a simple RC filter or a more complex active filter. The filter should be designed to reject high-frequency noise and interference while allowing the desired signal to pass through.
To handle overvoltage protection for the AMC1200BDUBR, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode in parallel with the input voltage. This can help to limit the voltage to a safe level and prevent damage to the device. Additionally, using a fuse or a current-limiting resistor can help to prevent excessive current from flowing into the device.
The recommended calibration procedure for the AMC1200BDUBR involves applying a known input voltage and adjusting the internal gain and offset registers to achieve the desired accuracy. This can be done using a calibration routine that involves measuring the output code and adjusting the registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input voltage is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1200BDUBR Overview

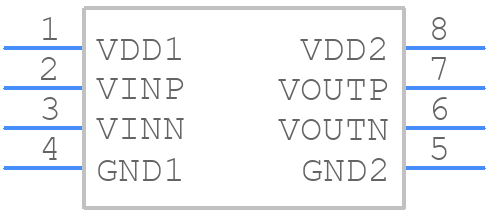

Use the download button to access the AMC1200BDUBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
