A good PCB layout for the AMC1200STDUBRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended range.
When selecting an external clock source for the AMC1200STDUBRQ1, consider the clock frequency, jitter, and phase noise. The clock frequency should be within the recommended range (typically 10-40 MHz), and the jitter should be minimized to ensure accurate conversions. Additionally, the clock source should be synchronized with the AMC1200STDUBRQ1's internal clock to avoid phase noise and ensure proper operation.
The AMC1200STDUBRQ1 provides status flags and error indicators that can be used to detect and handle errors and exceptions. For example, the device provides an overflow flag that can be used to detect overflow conditions. The application software should monitor these flags and take appropriate action, such as resetting the device or re-initializing the conversion process.
The AMC1200STDUBRQ1 is a high-performance device that can generate heat during operation. To ensure reliable operation over temperature, it's essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, the device should be operated within its specified temperature range (-40°C to 125°C) to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1200STDUBRQ1 Overview

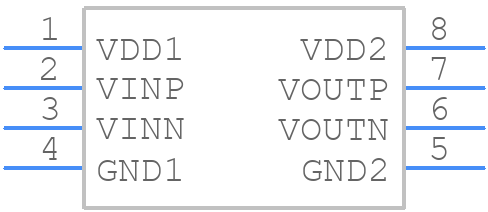

Use the download button to access the AMC1200STDUBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Isolation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
