Part Image

AMC1200TDWVRQ1 - Texas Instruments

Description: Automotive Catalog, 4kV peak Isolated Amplifier for Current Shunt Measurements

Download AMC1200TDWVRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

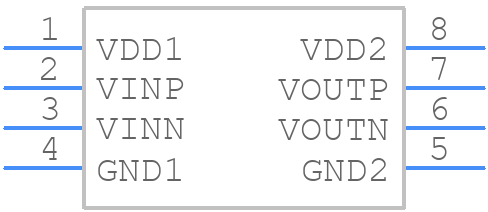

Symbol
AMC1200TDWVRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1200TDWVRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
AMC1200TDWVRQ1 - Texas Instruments - 3D model - Small Outline Packages - DWV0008A
click to zoom

AMC1200TDWVRQ1 Details

  • Manufacturer Part Number:

    AMC1200TDWVRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-02-18

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Bandwidth (3dB)-Nom:

    0.1 MHz

  • Common Mode Voltage-Max:

    2.7 V

  • Input Offset Voltage-Max:

    1500 µV

  • Isolation Voltage-Min:

    800 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Non-linearity-Max:

    0.075%

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    0.1

  • Width:

    5.85 mm

AMC1200TDWVRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • The AMC1200TDWVRQ1 has an internal calibration circuit. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers accordingly.
  • The AMC1200TDWVRQ1 can handle input voltages up to ±650mV without damage. However, it's recommended to limit the input voltage to ±500mV to ensure accurate measurements and prevent potential damage.
  • To optimize the AMC1200TDWVRQ1's performance for high-frequency applications, use a low-pass filter at the input to remove high-frequency noise, and ensure the PCB layout is optimized for high-frequency signals. Additionally, consider using a higher-order filter or a dedicated high-frequency amplifier to further improve performance.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD). Ensure that the analog power supply is stable before applying the digital power supply.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1200TDWVRQ1 Overview

Use the download button to access the AMC1200TDWVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12, or try a keyword search, such as Isolation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
