Texas Instruments provides a recommended PCB layout in the AMC1203BDW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
The AMC1203BDW has an internal calibration mechanism, but it's recommended to perform an external calibration using a known voltage source and a precision resistor to achieve the highest accuracy. The calibration process involves measuring the output voltage and adjusting the internal gain and offset registers accordingly.
The AMC1203BDW can handle a maximum common-mode voltage of ±250mV, but it's recommended to keep it within ±100mV for optimal performance and accuracy.
The AMC1203BDW is rated for operation up to 125°C, but its accuracy and performance may degrade at high temperatures. It's recommended to use the device within its specified operating temperature range of -40°C to 125°C for optimal performance.
To ensure EMC, it's recommended to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as needed. Additionally, the AMC1203BDW has built-in electromagnetic interference (EMI) filters, but it's still important to follow proper design and layout practices to minimize EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1203BDW Overview

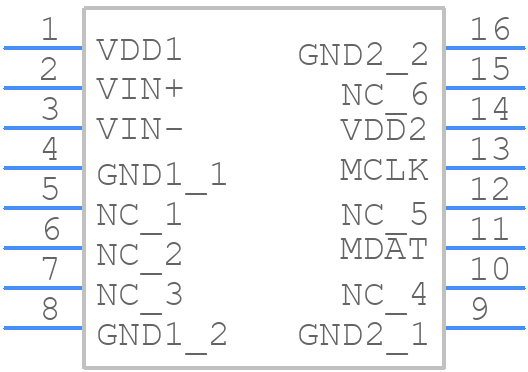

Use the download button to access the AMC1203BDW schematic symbol, PCB footprint, and 3D model.
