A good PCB layout for the AMC1203DUBR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the recommended range.
When selecting external components for the AMC1203DUBR, consider the device's operating frequency, input impedance, and output impedance. Choose resistors with low tolerance and temperature coefficients, and capacitors with low equivalent series resistance (ESR) and high reliability. Additionally, ensure that the components are rated for the device's operating voltage and temperature range.
To troubleshoot issues with the AMC1203DUBR, start by verifying that the device is properly powered and configured. Check the input signals and ensure they are within the recommended range. Use an oscilloscope to verify the output signals and check for any signs of noise or distortion. If issues persist, consult the datasheet and application notes for troubleshooting guides and contact Texas Instruments support if necessary.
The AMC1203DUBR has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Additionally, consider using thermal interface materials and follow proper PCB design guidelines to minimize thermal resistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1203DUBR Overview

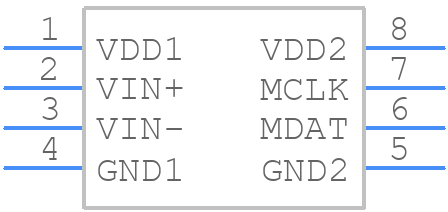

Use the download button to access the AMC1203DUBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
