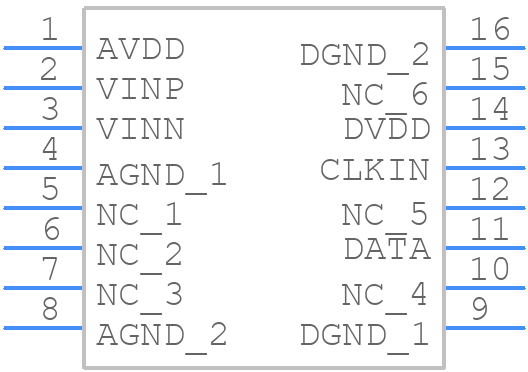

AMC1204BDW - Texas Instruments

AMC1204BDW Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AMC1204BDW to minimize noise and ensure optimal performance?
  Texas Instruments provides a recommended PCB layout in the AMC1204BDW evaluation module documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
• How do I handle the high-frequency noise generated by the AMC1204BDW's high-speed digital outputs?
  To handle high-frequency noise, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and adding ferrite beads or common-mode chokes to the digital output lines.
• What is the maximum cable length for the AMC1204BDW's differential output signals?
  The maximum cable length for the AMC1204BDW's differential output signals depends on the specific application and the signal frequency. As a general guideline, Texas Instruments recommends keeping the cable length below 10 inches (25 cm) to minimize signal degradation and noise.
• How do I ensure accurate temperature measurement with the AMC1204BDW's internal temperature sensor?
  To ensure accurate temperature measurement, follow proper PCB layout and thermal design guidelines, such as keeping the device away from heat sources, using thermal vias, and ensuring good thermal conductivity between the device and the PCB.
• What is the recommended power-up sequence for the AMC1204BDW to prevent damage or malfunction?
  The recommended power-up sequence for the AMC1204BDW is to power up the analog supply (VCC) before the digital supply (VDD). This ensures that the internal analog circuits are properly biased before the digital circuits are enabled.
