A good PCB layout for the AMC1210IRHAR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. It's also important to ensure the device is operated within its specified temperature range and that the input signals are within the recommended range.
The recommended input signal range for the AMC1210IRHAR is 0 to 5V. Operating outside of this range can result in reduced accuracy and linearity. It's also important to ensure the input signals are within the specified common-mode voltage range to maintain optimal performance.
The AMC1210IRHAR has built-in overvoltage protection (OVP) that can withstand input voltages up to 12V without damage. However, it's still important to ensure the device is operated within the recommended input voltage range to maintain optimal performance and prevent damage.
The typical power consumption of the AMC1210IRHAR is around 1.5mA. To minimize power consumption, consider using the device's shutdown mode, reducing the clock frequency, and optimizing the power supply voltage. Additionally, using a low-power mode or dynamically adjusting the power consumption based on system requirements can also help reduce power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1210IRHAR Overview

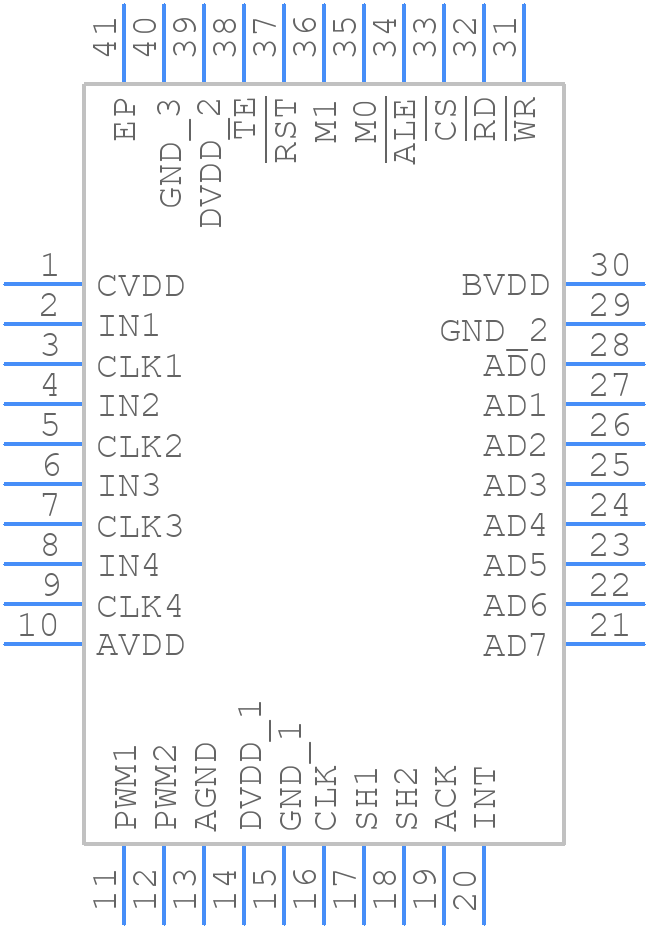

Use the download button to access the AMC1210IRHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC12,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
