Description:Data Acquisition ADCs/DACs - Specialized Small Reinforced Isolated Modulator With -50mV Input, Int Clk, and Manchester-Encoded CMOS Interface 8-SOIC -40 to 125
Texas Instruments provides a recommended PCB layout in the AMC1303E0520DWV evaluation module user's guide, which includes guidelines for component placement, routing, and shielding to minimize noise and ensure optimal performance.
The AMC1303E0520DWV does not require calibration, as it is a pre-calibrated device. However, it is recommended to follow the application notes and guidelines provided by Texas Instruments to ensure proper setup and configuration of the device.
The AMC1303E0520DWV has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it is recommended to consult the reliability report and thermal design considerations to ensure proper operation and reliability in extreme temperature conditions.
The AMC1303E0520DWV is designed to operate in industrial environments and can withstand moderate levels of vibration. However, it is recommended to consult the vibration testing and reliability reports to ensure that the device can operate reliably in the specific vibration environment of the application.
Texas Instruments provides guidelines for EMC compliance in the AMC1303E0520DWV datasheet and application notes. It is recommended to follow these guidelines, including proper PCB layout, shielding, and filtering, to ensure EMC compliance in the final application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1303E0520DWV Overview

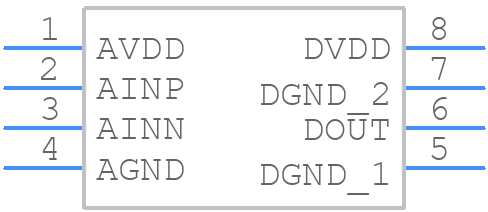

Use the download button to access the AMC1303E0520DWV schematic symbol, PCB footprint, and 3D model.
