AMC1303M0520DWV - Texas Instruments

Description: Data Acquisition ADCs/DACs - Specialised Small reinforced isolated modulator with +/-50mV input, 20 MHz internal clock, and CMOS interface 8-SOIC -40 to 125

Download AMC1303M0520DWV Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

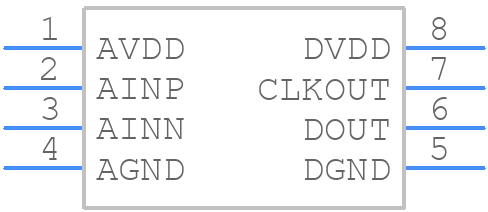

AMC1303M0520DWV - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1303M0520DWV - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
AMC1303M0520DWV - Texas Instruments - 3D model - Small Outline Packages - DWV0008A
click to zoom

AMC1303M0520DWV Details

  • Manufacturer Part Number:

    AMC1303M0520DWV

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-06-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 50mV

  • Analog Input Voltage-Max:

    0.05 V

  • Analog Input Voltage-Min:

    -0.05 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    20 MHz

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    9.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

AMC1303M0520DWV Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1303M0520DWV evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AMC1303M0520DWV does not require calibration, as it is a pre-calibrated device. However, the user's guide provides guidelines for verifying the device's performance and adjusting the output voltage offset if necessary.
  • The maximum allowed voltage on the input pins of the AMC1303M0520DWV is the supply voltage (VCC) + 0.3V, which is 5.3V for a 5V supply. Exceeding this voltage may damage the device.
  • The AMC1303M0520DWV is rated for operation from -40°C to 125°C. However, the device's accuracy and performance may degrade at high temperatures. It is recommended to consult the datasheet and user's guide for guidance on using the device in high-temperature environments.
  • Texas Instruments provides guidelines for ensuring EMC in the AMC1303M0520DWV user's guide, including recommendations for PCB layout, shielding, and filtering to minimize electromagnetic interference.
