A good PCB layout for the AMC1303M2520DWVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision voltage reference to improve accuracy.
The AMC1303M2520DWVR has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Additionally, consider using thermal simulation tools to model the thermal performance of your design.
The AMC1303M2520DWVR's digital output data can be handled using a microcontroller or FPGA. Consider using a SPI or I2C interface to transmit the data, and ensure proper synchronization and data formatting. Additionally, consider using error detection and correction mechanisms, such as CRC or checksums, to ensure data integrity.
To ensure EMI and EMC compliance, follow proper PCB layout and design practices, such as using shielding, filtering, and grounding techniques. Additionally, consider using EMI filters and common-mode chokes to reduce emissions, and ensure that your design meets the relevant regulatory standards, such as CISPR and FCC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1303M2520DWVR Overview

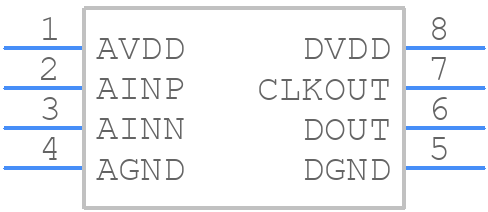

Use the download button to access the AMC1303M2520DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
