A good PCB layout for the AMC1304M05QDWQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal offset and gain registers accordingly. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
The AMC1304M05QDWQ1 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and avoid exceeding the maximum power dissipation. Additionally, consider using thermal simulation tools to model the thermal performance of your design.
The AMC1304M05QDWQ1 has an internal oscillator that can be used as a clock source. However, using an external clock source can provide better accuracy and stability. When using the internal oscillator, ensure that the device is properly bypassed and decoupled to minimize noise. When using an external clock source, ensure that it meets the device's clock input requirements.
To ensure EMI and EMC compliance, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering as necessary. Additionally, consider using EMI and EMC simulation tools to model and optimize your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1304M05QDWQ1 Overview

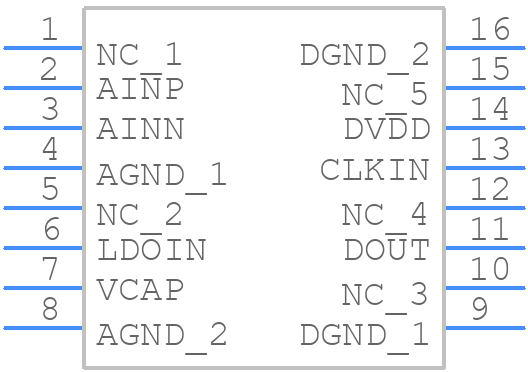

Use the download button to access the AMC1304M05QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
