Texas Instruments provides a recommended PCB layout in the AMC1305L25QDWQ1 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends following good PCB design practices, such as using a solid ground plane, separating analog and digital signals, and using shielding to minimize electromagnetic interference (EMI).
The AMC1305L25QDWQ1 requires calibration to ensure accurate measurements. TI provides a calibration procedure in the datasheet, which involves applying a known input voltage and measuring the output code. Additionally, TI recommends using a calibration routine that takes into account the specific application requirements, such as temperature range and input voltage range.
The AMC1305L25QDWQ1 has an operating temperature range of -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance may degrade at extreme temperatures, and the user should consult the datasheet for specific temperature-related specifications and limitations.
The AMC1305L25QDWQ1 is designed to operate in a variety of environments, including those with high vibration. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. TI recommends following good mechanical design practices, such as using a sturdy PCB and secure component mounting, to ensure reliable operation in high-vibration environments.
TI provides a troubleshooting guide in the AMC1305L25QDWQ1 datasheet, which covers common issues and their solutions. Additionally, TI recommends using debugging tools, such as logic analyzers and oscilloscopes, to identify and diagnose issues. It's also essential to review the device's datasheet and application notes to ensure proper configuration and usage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1305L25QDWQ1 Overview

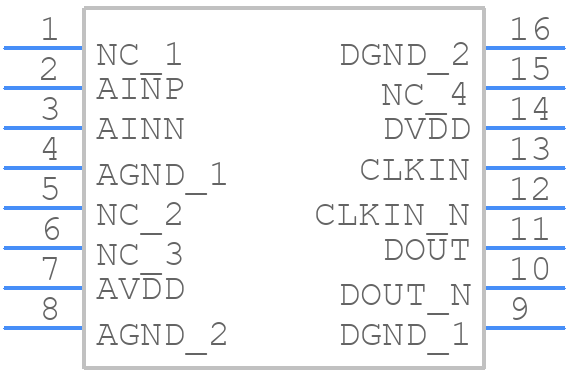

Use the download button to access the AMC1305L25QDWQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
