Texas Instruments provides a recommended PCB layout in the AMC1305M05DW datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, TI recommends using a 4-layer PCB with a solid ground plane and a separate analog ground plane to minimize noise and ensure optimal performance.
To ensure accurate voltage measurement, it's essential to consider the input voltage range and gain settings of the AMC1305M05DW. The device has a programmable gain amplifier that allows for input voltage ranges from ±50 mV to ±250 mV. Ensure that the input voltage is within the selected gain range, and adjust the gain settings accordingly to avoid saturation or clipping. Additionally, consider the effects of offset error, gain error, and noise on measurement accuracy.
The AMC1305M05DW has a maximum data rate of 1.5 MSPS (million samples per second). The data rate affects system performance, as higher data rates can increase the noise floor and reduce the signal-to-noise ratio (SNR). To achieve optimal performance, consider the trade-off between data rate and SNR, and ensure that the system's analog-to-digital converter (ADC) and digital signal processing (DSP) capabilities can handle the desired data rate.
The AMC1305M05DW has a power-on reset (POR) and brown-out reset (BOR) feature to ensure reliable system operation. During power-up, the POR circuitry holds the device in reset until the supply voltage reaches a minimum threshold. The BOR feature detects brown-out conditions and resets the device if the supply voltage drops below a certain threshold. To handle these features, ensure that the system's power supply is stable and within the recommended operating range, and consider adding external reset circuitry to ensure a clean power-up sequence.
The AMC1305M05DW has a maximum junction temperature (TJ) of 150°C. To ensure reliable system operation, consider thermal management techniques such as heat sinking, thermal interface materials, and airflow management to keep the device temperature within the recommended operating range. Excessive temperatures can impact system reliability, reduce the device's lifespan, and affect measurement accuracy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1305M05DW Overview

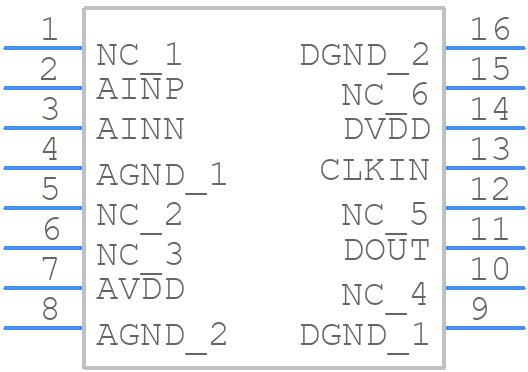

Use the download button to access the AMC1305M05DW schematic symbol, PCB footprint, and 3D model.
