Texas Instruments provides a recommended PCB layout in the AMC1305M05DWR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
The AMC1305M05DWR does not require calibration, as it is a fully calibrated device. However, the user's guide provides guidelines for verifying the device's performance and adjusting the output voltage offset if necessary.
The maximum allowed voltage on the input pins of the AMC1305M05DWR is the supply voltage (VCC) + 0.3V, which is typically 5.5V for a 5V supply. Exceeding this voltage can damage the device.
The AMC1305M05DWR is rated for operation from -40°C to 125°C, but the device's accuracy and performance may degrade at high temperatures. It is recommended to consult the datasheet and user's guide for guidance on using the device in high-temperature environments.
To protect the AMC1305M05DWR from EMI, it is recommended to use proper shielding, grounding, and filtering techniques, such as using a metal shield around the device, connecting the device's ground pin to a solid ground plane, and using EMI filters on the input and output lines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1305M05DWR Overview

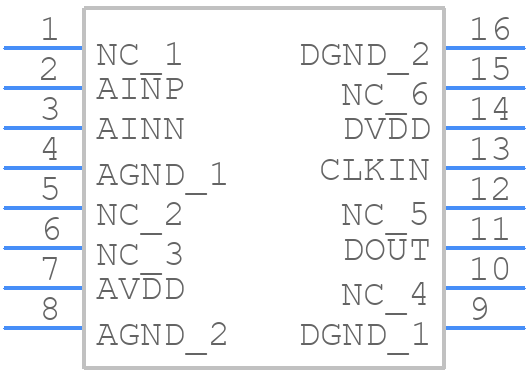

Use the download button to access the AMC1305M05DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Other Signal Circuits
