AMC1306E05DWVR - Texas Instruments

Description: Small Reinforced Isolated Modulator With ±50mV Input and Manchester-Encoded CMOS Interface

Download AMC1306E05DWVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

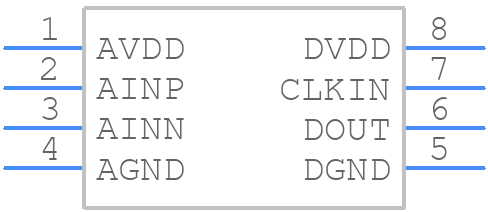

Symbol
AMC1306E05DWVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
AMC1306E05DWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
AMC1306E05DWVR - Texas Instruments - 3D model - Small Outline Packages - DWV0008A
click to zoom

AMC1306E05DWVR Details

  • Manufacturer Part Number:

    AMC1306E05DWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-07-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 50mV

  • Analog Input Voltage-Max:

    0.25 V

  • Analog Input Voltage-Min:

    -0.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Linearity Error-Max (EL):

    0.007629%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    21 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    9.8 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.85 mm

AMC1306E05DWVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the AMC1306E05DWVR evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The selection of input filter components depends on the specific application and noise environment. Texas Instruments provides guidelines for selecting input filter components in the AMC1306E05DWVR datasheet and application notes, including calculations for component values and recommendations for filter topologies.
  • The maximum allowed voltage on the AMC1306E05DWVR's input pins is the supply voltage (VCC) plus 0.3V, which is 5.3V for a 5V supply. Exceeding this voltage can damage the device.
  • The AMC1306E05DWVR requires calibration to ensure accurate measurements. Texas Instruments provides calibration procedures in the datasheet and application notes, including guidelines for selecting calibration resistors and performing calibration routines.
  • The typical power consumption of the AMC1306E05DWVR is around 12mW at 5V supply voltage, but this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AMC1306E05DWVR Overview

Use the download button to access the AMC1306E05DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
