A good PCB layout for the AMC1306E25DWVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce noise and improve performance.
The AMC1306E25DWVR is a self-calibrating device, but it may require additional calibration for specific applications. To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and consider using an external calibration resistor to fine-tune the device's gain and offset.
The maximum allowed input voltage for the AMC1306E25DWVR is 5.5V. To protect the device from overvoltage, use a voltage regulator or a voltage limiter circuit to ensure the input voltage remains within the recommended range. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage and prevent damage to the device.
To minimize power consumption and reduce heat generation in the AMC1306E25DWVR, use a low-power mode when possible, reduce the clock frequency, and optimize the device's power-down mode. Additionally, consider using a low-dropout regulator to reduce power consumption and heat generation.
The recommended operating temperature range for the AMC1306E25DWVR is -40°C to 125°C. Temperature can affect the device's performance, with increased temperature leading to increased offset voltage and reduced accuracy. To ensure optimal performance, keep the device within the recommended temperature range and consider using thermal management techniques such as heat sinks or thermal interfaces.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AMC1306E25DWVR Overview

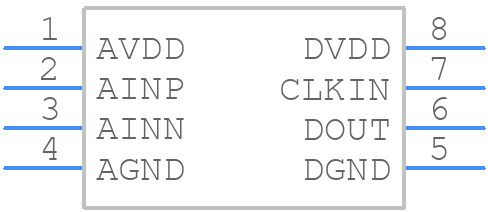

Use the download button to access the AMC1306E25DWVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AMC13,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
